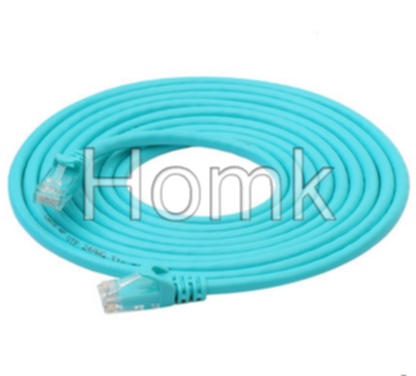

8 core Fiber Optic Network Patch Cord Cat6

Details

8 core Fiber Optic Network Patch Cord Cat6


1.Fast and reliable connection

2.Twisted pairs with bright color for easy recognition
3.resistance: (f=1-100MHZ)100±15%
4.delay deviation: (max)40ns/100m
5.rated transmission rate: (NVP):72%
6.tensile resistance: (max)250N
7.temperature range: -40°C~+70°C
8.Color Code: Pair 1: white/blue-blue/white Pair 2: white/orange-orange/white
Pair 3: white/green-green/white Pair 4: white/brown-brown/white

or as per customer's requirements
9.OEM and ODM

10.Sample available

Model

Indoor Cat6 UTP Network Cable

Conductor Material

copper/CCA

Conductor Dimension

23AWG/0.511mm 24AWG /0.404 26AWG/28AWG

insulation thickness

0.18mm

The thickness of Jacket

0.55mm

Outer Diameter

5.4mm/5mm

Insulation

PE

Number of Twisted Pair

8P

Shielding

STP/FTP

Ripcord yes/no

Yes

Jacket

PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen)

Color

white/gray/blue/black or as your request
