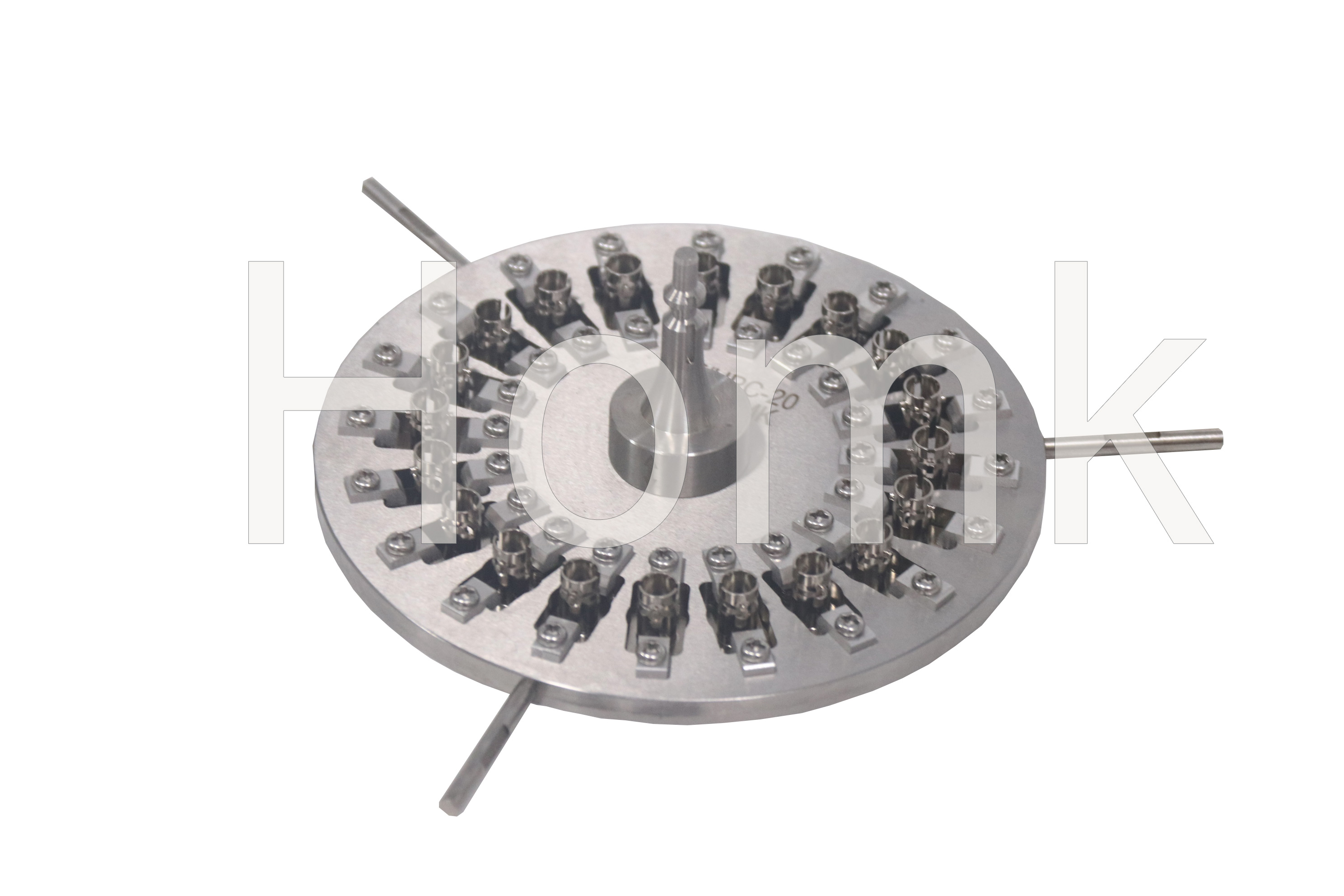

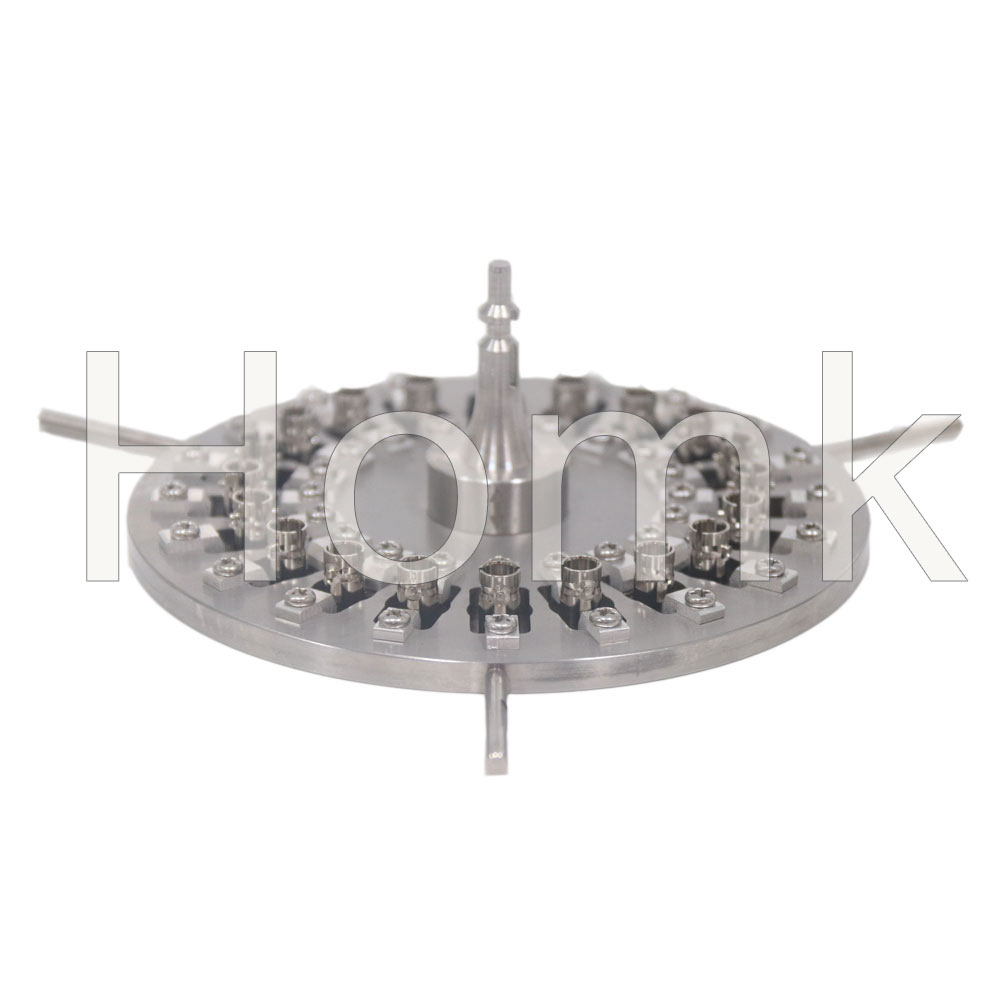

APC8000 fiber polishing fixture(STUPC-20)

Details

100% Original Swiss S136 Material STUPC-20 APC8000 Fiber Polishing Fixture By HOMK Exclusive Manufacturing.


The STUPC-20 APC8000 fiber optic polishing jig is IPC Structure, Independent compression of each connector. The jig pass rate with Interference> = 98% (100% Typical, according to IEC), APPEX OFFET is within 30. It is high stability and good surface quality.


The jig using high quality steel with heated treat, the hardened steel S136 provide long service life. This FC APC8000 polishing fixture can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according to the customer request.

1. It is used in four corners corners fiber polishing machine, to plishing connectors.

2. This fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. Each one can hold 20 connectors. It has high production efficiency.

4. The plugs of STUPC-20 APC8000 polishing fixture can be interchanged, extend FC APC8000 polishing fixture's life.

5. It has good quality, high efficiency,

6. All kinds of APC8000 polishing fixture can be customized according by customer requirement.
