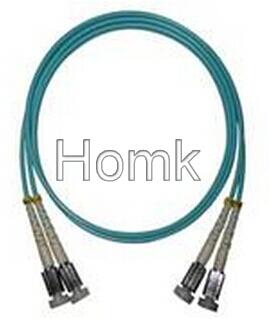

D4 OM3 Patch Cord

Details

D4 OM3 Patch Cord


PC, UPC or APC polishing

Single mode fiber: ITU - T G. 652 D
Multi mode fiber: ITU - T G. 651
Standard: Telcordia GR-326-CORE
Standard housing, ceramic ferrule
Cable diameter: 2.0mm or 3.0mm or 0.9mm
Fiber diameter: 9/125μm, 62.5/125μm or 50/125μm
Insertion loss: SM Less than 0.3 dB MM Less than 0.3dB
Return loss: PC SM larger than 45 dB
UPC SM larger than 50dB
APC SM larger than 60dB
UPC MM larger than 20dB
Repeatability: Less than 0.2 dB
Changeability: Less than 0.1 dB
Operating temperature range: -40° C ~ 80° C
Storage temperature range: -40° C ~ 80° C
Tensile strenth: 100N
Min. Bending radius: 35mm



Ordering Information:
- Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
- Ferrule End-face: PC, UPC, APC
- Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
- Cable Quantity: Simplex, duplex or customized
- Cable Diameter: 3.0mm, 2.0mm, 0.9mm
- Cable Length: 1, 2, 3 meter or customized
- Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
