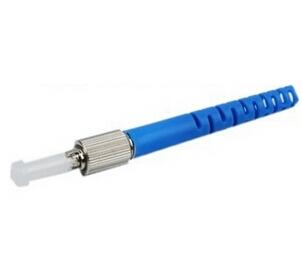

DIN 2.0mm&3.0mm Fiber Optic Connector
Specifications
Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price
Usage environment
Operating Temperature: -40º C to+75º C
Photoelectricity specifications
1. Insertion loss: ≤ 0.3dB
2. Return loss: ≥ 50dB
3. Durability ≤ 0.1dB typical change, 500 matings
4. Available Wavelengths SM=1310&1550nm
Applications
1. CATV
2. LANs
3. Active device termination
4. Telecommunication networks
5. Industrial, medical and military
2. Specifications: | ||||||
Items | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insertion Loss | <0.2dB | <0.3dB | ||||
Return Loss | >45dB | >50dB | >60dB | 35dB | ||
Durability | <0.1dB typical change,500 matings | |||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:1um | 125um,Conectricity:1 to 3um | ||||
125.3+1/-0um, Conentricity:1um | 127um,Conectricity:1 to 3um | |||||
125.5+1/-0um, Conentricity:1um | 128um,Conectricity:1to 3um | |||||
126.0+1/-0um, Conentricity:1um | ||||||
