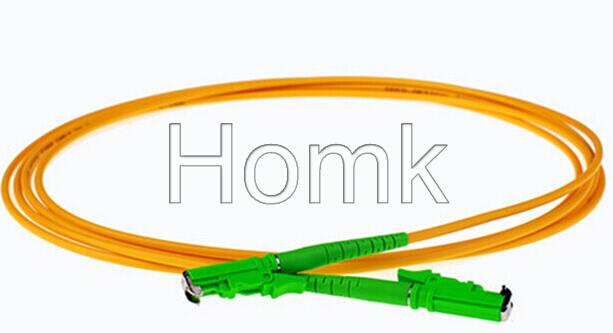

E2000 APC SM SX Fiber Patch Cord
Feature:
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
8.Patch cords accord with bellcord GR-326 ,ISO9001,RoHS
Specification:
Mode | SM | MM |
Polish | UPC/APC | PC |
Insertion Loss | Typical ≤0.2dB | ≤0.25dB |
Return Loss | ≥50DB(PC) | ≥30dB |
Interchangeability | ≤0.2dB | |
Repeatability | ≤0.1dB | |
Durability | ≤0.2dB typical change, 1000 matings | |
Tensile Strength | > 10kg | |
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
