Details

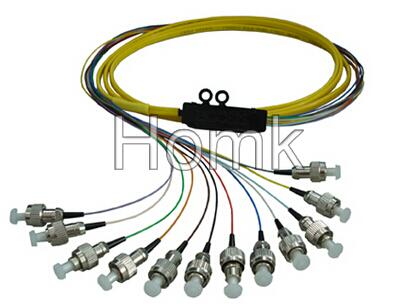

FC 12 core Pigtail
● 8,12 and 24 fiber connector terminations and assemblies
● MPO / MTP Male (with guidepins) assembled with 0.9mm cable to single-fiber connectors
● Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber types
Specification:
Single-model UPC | Single-model APC | Multi-model PC | |
Insert loss (dB) | ≤0.20 | ||
Max insert loss(dB) | ≤0.30 | ||
Repeatability(dB) | ≤0.10 | ||
Return loss (dB) | ≥50 | ≥60 | ≥35 |
Operating temperature | -20-+60 centigrade | ||
Storage temperature | -40-+85 centigrade | ||
