FCPC-FCPC MM DX 3m Fiber Patch Cord

Details

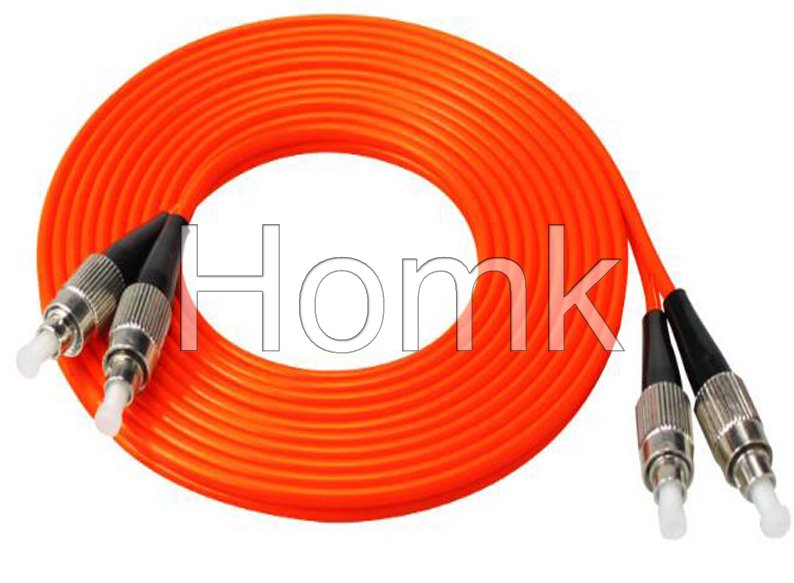

FCPC-FCPC MM DX 3m Fiber Patch Cord

Fiber Optic Patch Cord, also named Fiber Optic Jumper or Fiber Optic Patch Cable,

is one of the most frequently used components in fiber optic network, and is used to
link the equipments and components in fiber optic network.



Features:

1.Price-Competitive

2.Low Insertion Loss & PDL

3. Customized lengths(1m/2m/3m)

4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5.Polishing Options: PC/UPC/APC

6.Feature Connector with Ceramic Ferrules



Details:

Parameters

Standard Fiber Cable Assemblies

Fiber Type

SM(G.652/G.657A)

MM(OM1/OM2/OM3)

Jacket Materials

LSZH/OFNR/PVC

Connector Type

SC/LC/ST/LC/MU/MTRJ/MPO/E2000

Ferrule Materials

Ceramic

Testing Wavelengths

1310±30/1550±30nm

850±30/1300±30nm

Insertion Losss(dB)

≤ 0.3dB

≤ 0.3dB

TIA/EIA-455-107

(PC/UPC/APC)

(PC/UPC)

Return Loss(dB)

≥45dB(PC/UPC)

≥35dB(PC/UPC)

TIA/EIA-455-107

≥55dB(APC)

Exchangeability

≤ 0.2dB

Cable Assemblies

Pigtail/Simplex/Duplex/Fan-out Patchcord

Operating Temperature (° C)

-10~ + 70

Storage Temperature (° C)

-40 ~ +85

Package

1unit/bag
