Details

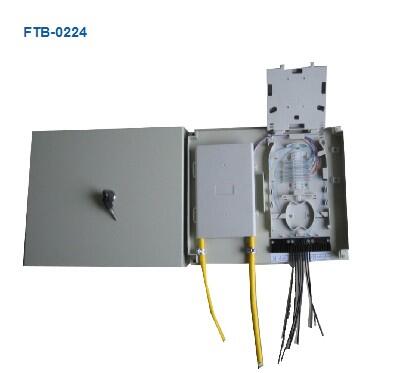

FTTH Floor Terminal Box
Description:
Suitable for FTTH project of multi-storey buildings,
achieving branch connection within distribution and customer cables in corridor of building.
Features:
-Suitable for wall mounted in siloof building corridor
-Small size,light weight,high capacity,easy to splice and installation
-Support through connection style
-Preinstalled one pc of 24 fibers splice tray exclusively for FTTH drop cable
-Suitable for connection one distribution cable with 24 pcs customer FTTH drop cables
-Mechanical splice or fusion splice
Specifications：
Item | FTB-0224 |
Dimension（HxWxD） | 260x320x45mm |
Cable diameter | Ф10～Ф22 |
Cable ports | 2holes |
Splice tray cores | 24（single core） |
No. of splice trays | 1 |
Max capacity | 72 （single core） |
