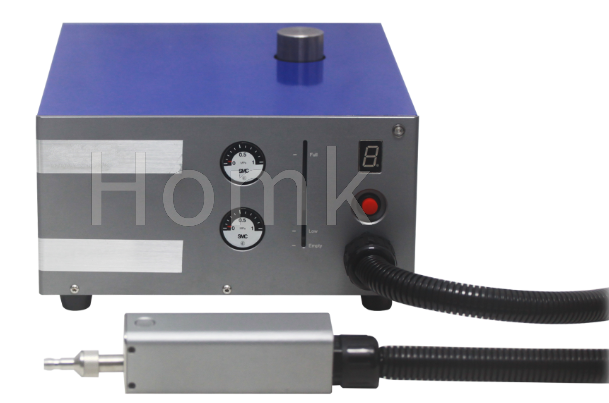

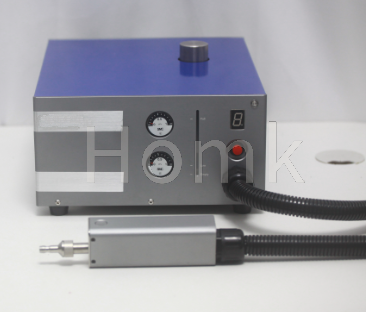

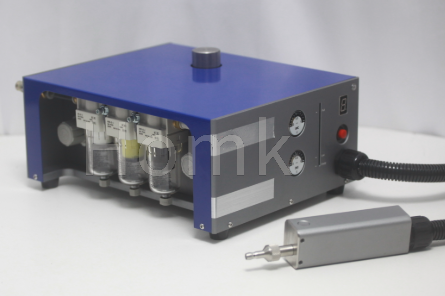

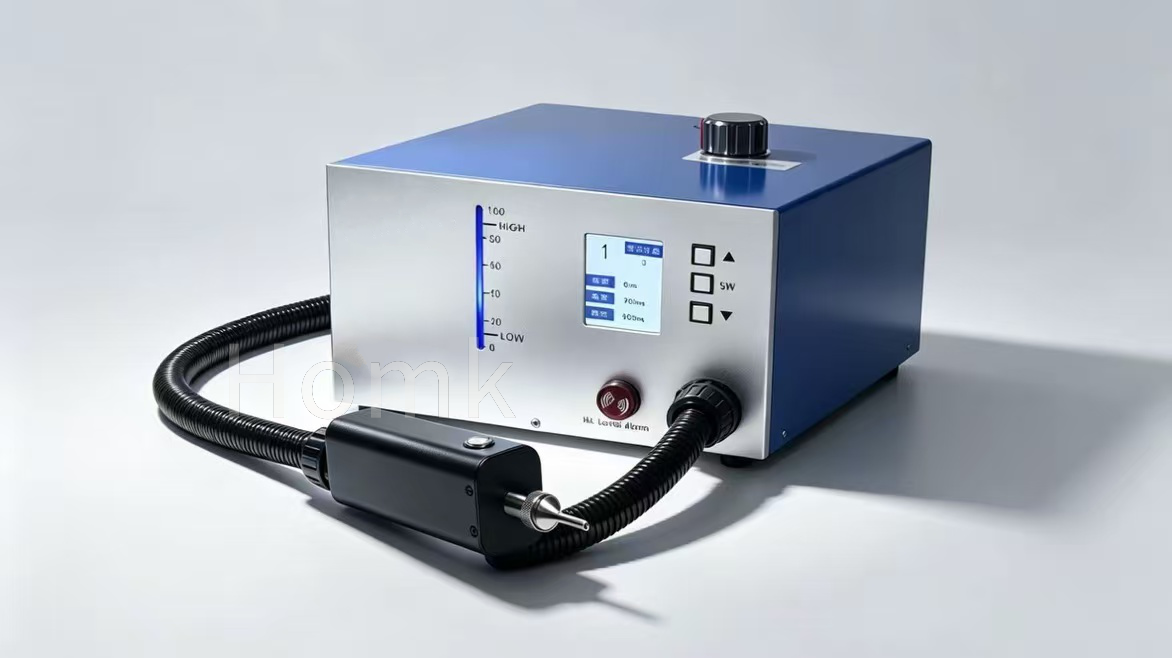

Fiber Optic End Cleaning Machine HK-09C

Product Advantages

The HK-09C cleaning machine employs a liquid-gas cleaning principle, where the cleaning solution

quickly dissolves contaminants on the fiber end face, while the sprayed dust-free gas blows away

and collects both the cleaning fluid and oil residues. The entire cleaning process takes only 2

seconds, achieving a single-cleaning efficiency of over 98%. Equipped with a high-precision

filtration system including an air filter, oil mist separator, and micro-mist separator, it ensures no

external contamination during cleaning, guaranteeing that the cleaned fiber end face remains

clean for extended periods under any environmental conditions.

Product Advantages

● Compact handle, perfectly integrated with ergonomic hand design, minimizes operational fatigue

to the greatest extent.

● Uses minimal cleaning solution, resulting in low cleaning costs and a long service life.

● 10 different programs to choose from, allowing you to select the appropriate program for various

products to achieve optimal cleaning results.

● Equipped with a high-precision air filter, oil mist separator, and micro-mist separator filtration

system.

● 8-core I/O reserved for communication with robots, enabling automated cleaning.

● Can clean fiber end faces of optical transceiver ports, TOSA and ROSA, male and female optical

attenuators, patch panel optical ports, as well as standard single-mode and multi-mode fiber end

faces.
