Fiber Polishing Fixture (MU/APC-24)

Details

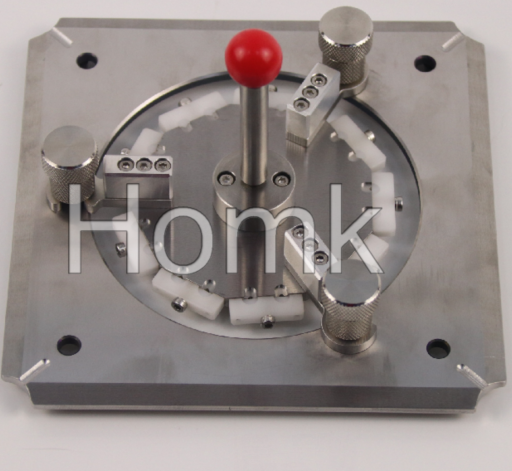

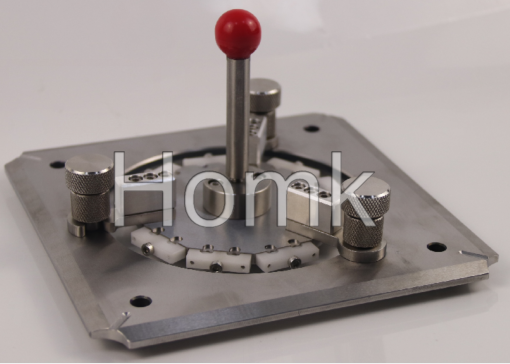

100% Original Swiss S136 Material MU/APC-24 Handheld Fiber Polishing Fixture By HOMK Exclusive Manufacturing


The MU/APC-24 is IPC Structure, Independent compression of each    connector. Polishing fixture pass rate with Interference> = 98%   (100%  Typical, according to IEC), APPEX OFFET is within 24. This polishing  fixture is high stability and good surface quality.

The fixture using high quality steel with heated treat, the hardened steel S136 provide long service life. This polishing fixture can design the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, according  to the customer request.

1. It is used in four corners corners fiber polishing machine, to plishing connectors.

2. This fixture adopt independent pressurized way, eliminate ferrules show the different length effects on polishing.

3. This one each polishing fixture can hold 24 connectors. It has high production efficiency.

4. The plugs of MU/APC-24 can be interchanged, extend polishing fixture's life.

5. It has good quality, high efficiency,

6. All kinds of polishing fixture can be customized according by customer requirment.
