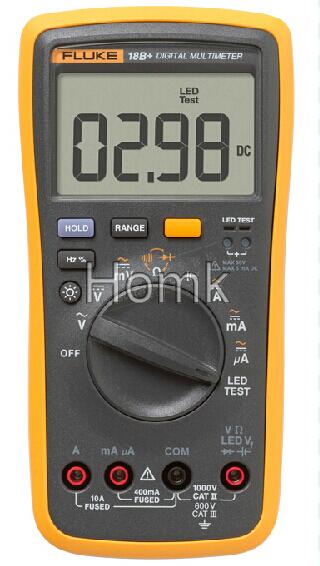

Fluke F18B Multi-function power meter

Details

Fluke F18B Multi-function power meter


It is a professional tester and with multi-function.

What's more,it is easy to operate.

A brand-new, unused, unopened, undamaged item in its original packaging.

Our products have been exported to more than 40 countries over the world.

We believe that during the days of economic and cultural globalization,

the key point for running business successfully both at home and abroad is to be creative, considerate,passionate, committed and industrious.

Features:



- Multiple functions with Auto / Manual ranges

- Large LCD display, 4,000 Counts update 3/sec

- Main Measurements : Frequency, Temperature, AC/DC A-V-Ohm , capacitance, Diode & Continuity , duty cycle

- Frequency : 50Hz to 100Khz

- Temperature : -55C to 400C

- Capacitance : 0.01nF to 100uF

- AC Volts : 0.1mV to 1,000V

- DC Volts : 0.1mV to 1,000V

- AC Current : 0.1uA to 10A

- DC Current : 0.1UA to 10A

- Resistance : 0.1 ohm to 40Mohm

- Duty Cycle : 0.1% to 99.9%

- Data Hold Function

- Both Auto range and Manual range Selectable

- Overrange protection for all ranges

- Polarity Indication : Indicates negative polarity

- Overflow Indication

- Sleep Mode / Auto Power off / Low Battery Indication

Specification:



- Frequency : 50 / 500 / 5K /50K / 100KHz , +/- 0.1% + 3

- Temperature : -55C to 400C , 2% to 9 % +/- 2C

- Capacitance : 50nF / 200nF / 2uF / 20uF / 200uF / 20mF , +/-2% +5

- DC Volt : 400mV / 4V / 40V / 400V / 1000V , +/-1.0% + 10

- AC Volt : 400mV / 4V / 40V / 400V / 1000V, +/- 3.0% + 3

- DC Current : 400uA / 4,000uA / 40mA / 400mA / 4A / 10A , +/- 1.5% + 3

- AC Current : 400uA / 4,000uA / 40mA / 400mA / 4A / 10A , +/- 1.5% + 3

- Resistance : 400 / 4K / 40K / 400K / 4M / 40M Ohm , +/- 0.5% + 3

- Duty Cycle : 0.1% to 99.9% , +/-1% - Continuity Test with Alert

- Diode Test - Power Supply : 2 x AA 1.5V Battery - Dimension : 180 x 89 x 51.5mm

- Accessories : Test leads, Operation Manual

Package Content:



- 1 x Multimeter

- 1 x Test lead

- 1 x Operation manual
