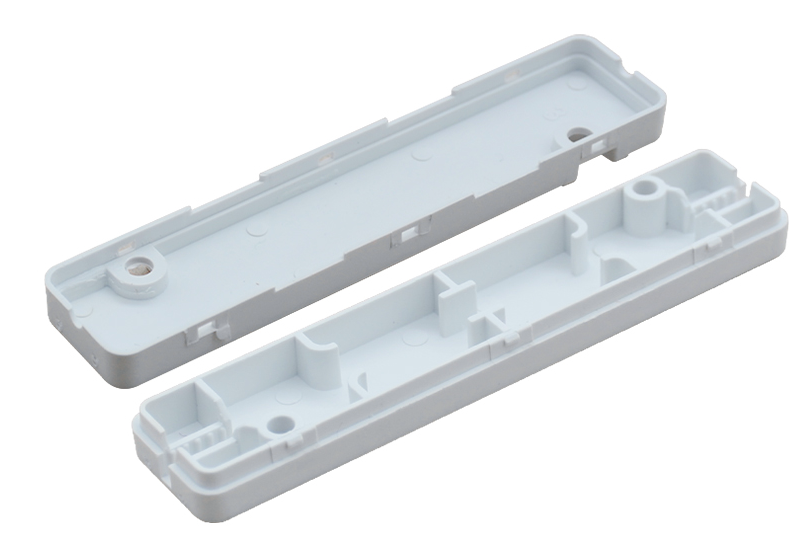

Ftth Fiber Optic Cable Protection Box
Product description:
Splicing protection cassette is special protection tube for FTTH butterfly cable (drop cable) fiber fusion splice, it is made of brand new material of ABS environmental protection material, tight and stable on fiber splicing point. It is suitable for drop cable or variety of pigtails welding, and provide protection on the heat shrinkable tubes and the splicing point. (Should use the especially FTTH drop cable fusion splicer).
Features:
1.Small size, beautiful appearance, easy installation.
2.Widely used in FTTH drop cable, also for pigtails 2.0mm 3.0mm cable fixing.
3.The welding splicing point protection is stable and reliable, not easy to be damaged by external force.
Technical parameter:
| Environment temperature | -25 ~+65 degree |
| Suitable for optical fiber | 31 * 0.9mm, 2.0mm cable, 0.25mm cable |
| Atmospheric pressure | 70Kpa~106Kpa |
| Dimension | 85*18*11mm |
| Material | ABS plastic |
| Package | 100pcs/bag |
| Weight | 1.08kg/100pcs |
| colour | white |
Using Method:
Put the fiber into protection box, tighten the screw, stuck the fiber firmly.
