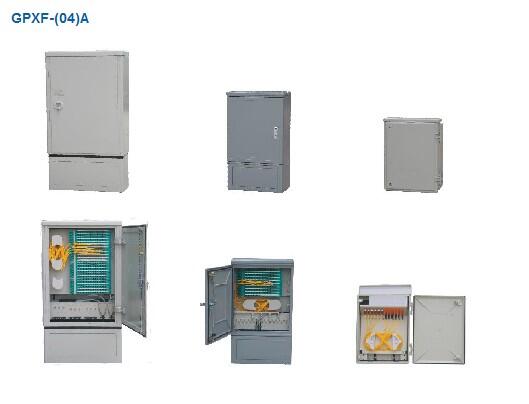

GPXF-(04)A


Introduction:



GPXF-(04) can be applied in active link with trunk optical cables and cable distribution,accomplishing fusion,storage,distribution and dispatch for the cables.



  • Standard case body,made of high intensity,anti-corrosive,anti-aging special composite material

  • Adapting various bad weather condition,with reliable sealing,water-proof and dampproof.

  • Splicing&distribution integration module with adaptor assembing,fusion and connection,storage in integration,inserted assembling

  • Available for different type of adaptors such as FC,SC,ST

  • Adaptors assembing with deflexion of 30o to ensure fiber pigtail bending radius,with perfect control winding ring of the fiber in horizontal and vertical

  • The bottom end is assembled with spare splice tray,for direct fusion and connection of trunk optical cables and distributioin cables



Specifications:

±      Working temperature:-40℃~+40℃

±      Storage temperature:-40℃~+60℃

±      Relative humidity:≤95%(+40℃)

±      Atmospheric pressure:70Kpa~106Kpa





Order guide

Model

Dimension

Max capacity(cores)

GPXF-(04)A

750x1450x360mm

288

GPXF-(04)B

480x300x950mm

144

GPXF-(04)C

750x1450x620mm

576

GPXF-(04)D

450x320x180mm

48
