nSuitable for thermal shrinkage molding of heat shrink tubing during production of electric cable , heat shrink cable accessories or optical fiber cable connector assembly.

nHeating time, heating temperature and cooling time can be set

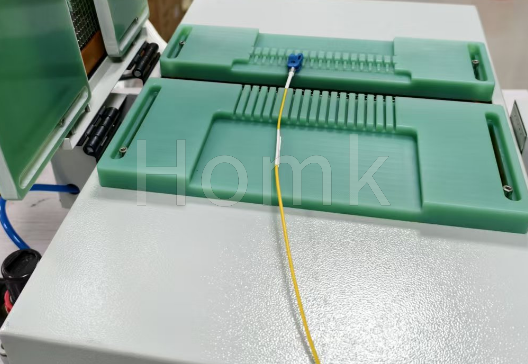

n Custom fixtures for clamping of holding cables and heat shrink tubing according to different cable connector assembly

n Heat both the upper and lower sides simultaneously, far infrared quartz heating tubing can be quickly heated to specified temperature in a short time, ensure that the heat conduct to each shrink tubing fixed at different position and the same shrink tubing at different positions are uniform.

n Automatic air cooling system, which can quickly cool the heating chamber from high temperature  to room temperature

n High efficiency, 8pcs of  60 mm length dual wall heat shrink tubing for automotive protection only need 15 seconds

n Working temperature:200ºC Max

n  Effective heating area:L180mm*W115mm

n Temperature control accuracy: ±3℃

n  Heating time range:1S ~ 99H59M59S

n  Heat power:1600 W

n  Power suply：220V AC,50/60Hz,10A

n  Size：L450 xW 300 x H130 mm

n  Net weight ：8 Kg
