Shenzhen Homk Telecom Tech Co., Ltd.

In-line fiber closure(GPJT)

Details

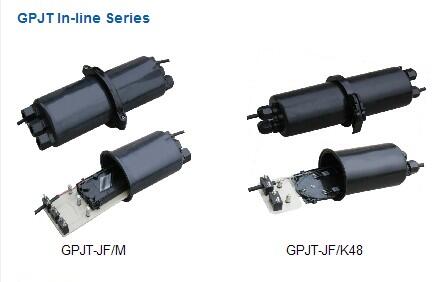

In-line fiber closure(GPJT)


Description:

1. Suitable for aerial,and duct application.

2. Engineering plastic body,steel sheet fastening pieces

3. No special tools are needed to open the closure, it can be opened repeatedly,without changing sealing material


Item
GPJT-JF/M
GPJT-JF/K48
Size (mm)
610x185x140
610x185x140
Weight(kg)
4.7
1.7
Cable diameter
Ф7~Ф28
Ф7~Ф28
Cable ports
3 in,3 out
2 in,2 out
Splicy tray cores
16/21(single) ,48(ribbon)
          12(single)
No.of splice trays
6
4
Max capacity
147(single)
48(single)
Cable entry sealing
Screw thread mechanical sealing

sealing structure
Silicon gum material
Silicon gum material



Packing information

Item
Inner carton size (mm)
Inner carton weight (kg)
Outer carton size (mm)
Outer carton size
(kg)
No./carton (pcs)
GPJT-JF/M
630x295x215
4.7
650x620x460
20.7
4
GPJT-JF/K48
455x195x160
1.7
480x420x670
15.4
8
