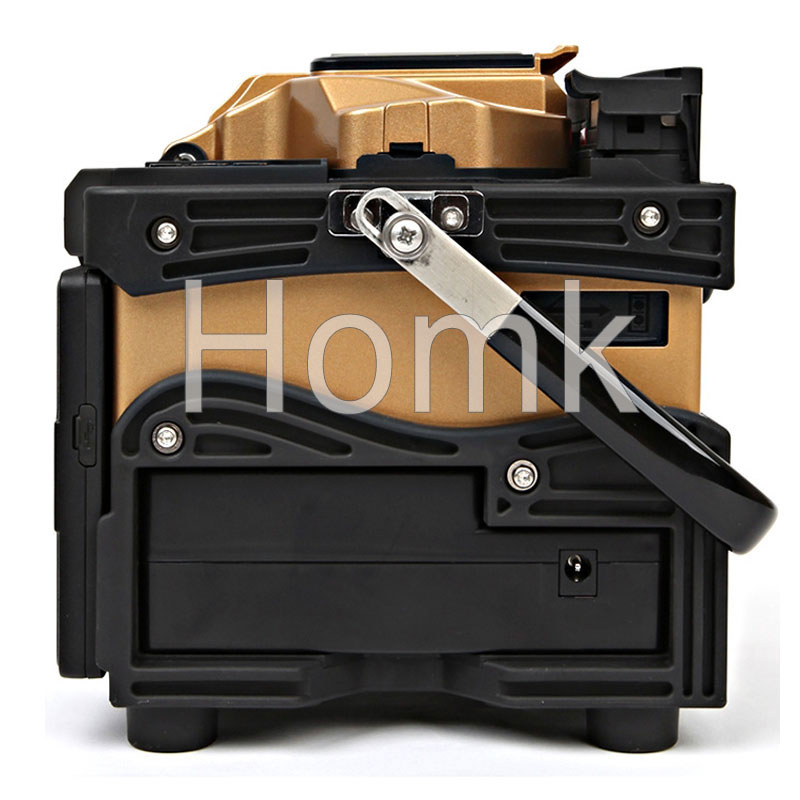

Inno View 12R Ribbon Fusion Splicer
The Inno View 12R, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market. Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double - tapping (Zoom in & out) to the worldâ??s highest magnifi cation of 250x for ribbon splicer. The View 12R provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice / heat cycles, and universal holder both for 250?m & 900?m single fiber.
Features:
Fast Heating up to 20s (max 14s during consecutive heating)
3 Bright LEDs for Dark Environment

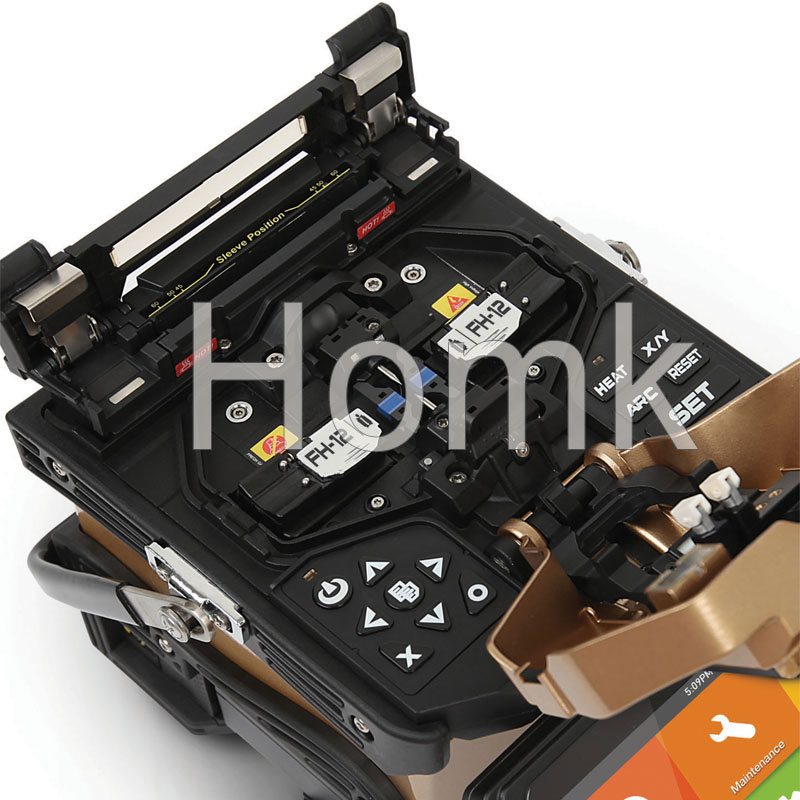

Motorized Clamp for Imporved Accuracy

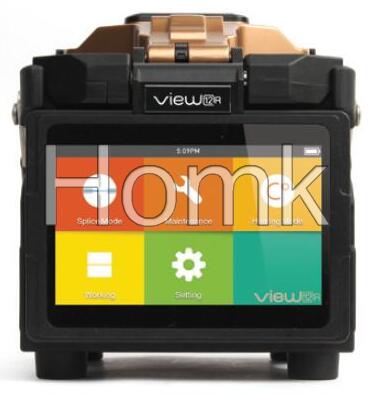

5" Touch Screen with Smart GUI
The Highest 250X magnification for ribbon splicer
Double Tap to Zoom in & out
Protected by Tempered Glass Film
Highest Battery Capacity for ribbon splicer with typical 220 cycles

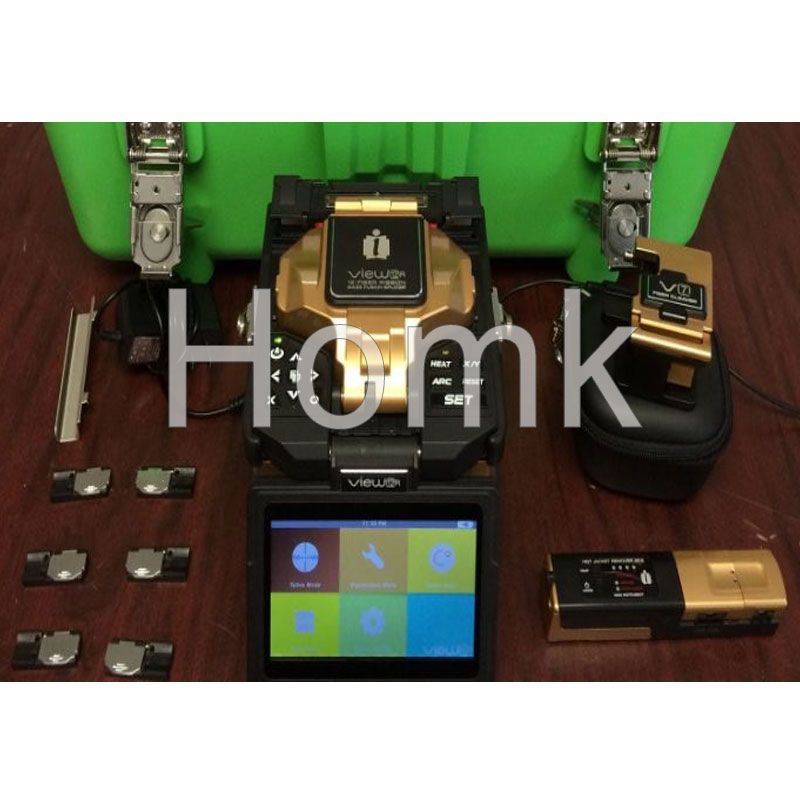

Replaceable Fiber Holders from Single to 12 Fibers
Specifications:
| Model | View 12R |
| Dimension | 160H x133W x155D mm (excluding rubber bumper)/ 167H x143W x163D mm (including rubber bumper) |
| Weight | 1.98 KG (without battery)/ 2.64 KG (with battery) |
| Number of Fiber | 1, 2, 4, 6, 8, 10, 12 |
| Applicable Fibers | SM (ITU-T G.652 & G.657)/ MM (ITU-T G.651)/ DS (ITU-T G.653)/ NZDS (ITU-T G.655) |
| Compatible Fiber / Cable | Ribbon : 0.25~0.4 mm/ Single: 250 ?m & 900 ?m |
| Cleaved Length | 10 ~13 mm |
| Cladding Diameter | 125 ?m |
| Splicing Mode | Max 100 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss | SM: 0.05dB/ MM: 0.02dB/ DS: 0.08dB/ NZDS: 0.08dB (ITU-T standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time | Ribbon fiber : 15 sec/ Single fiber : 9 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 60mm, 50mm, 40mm, Micro |
| Heating Time | Typical 20 sec |
| Results Storage | Last 2000 results |
| Tention Test | 1.96~2.25N |
| Operating Condition | Operating Altitude: 0~3,660m above sea level / 0~95% relative humidity/ -10~50?/ Max Wind 15m/s |
| Storage Condition | 0~95% relative humidity/ - 40~80? |
| Display | 90° bi - directional view, 5.0â?? Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 250X Magnifi cation |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice & Heating with Battery | 8700mAh Battery Capacity / Typical 220 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 1500 arcs, can be extended by using an electrode grinder |
| Terminal | DIN / Micro HDMI |
