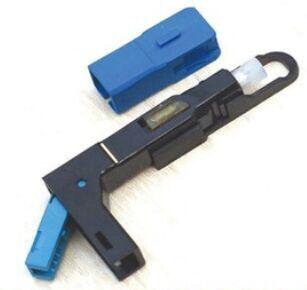

L shape fiber fast connector SC

Details

L shape fiber fast connector SC


Specifications

1.SM MM Ferrule

2.45 90 degree boot

3.0.9 / 2.0 / 3.0mm Boot

4.Blue Beige Green Red Black White Boot

5.RoHS, SGS Complia

Fetures

> Compliant with Telcordia,GR-326-CORE,TIA/EIA and IEC

> Superior Quality Standard PC/UPC/APC Polishing

> Customer Defined Specifications

> RoHS Compliance

 > Environmental Stable

 > Low Insertion Loss & back Reflection

Applications

> CATV Networks

> Telecommunication Networks

> Local Area Networks

> FTTH and FTTx

> Active Device Termination

> Testing Instruments

SPECIFICATIONS



Single mode

Multimode

Insertion Loss

≤0.20dB

≤0.30dB

Return Loss

PC ≥50 dB APC ≥60 dB



Durability

≤0.2 dB typical change, 1000 matings

Operating Temperature

-40 to + 85°C

-40 to + 85°C

Ferrule Spec



125.0+1/-0μm, Concentricity: ≤1.0μm

125μm, Concentricity: ≤3μm

125.3+1/-0μm, Concentricity: ≤1.0μm

127μm, Concentricity: ≤3μm

125.5+1/-0μm, Concentricity: ≤1.0μm

128μm, Concentricity: ≤3μm

126.0+1/-0μm, Concentricity: ≤1.0μm
