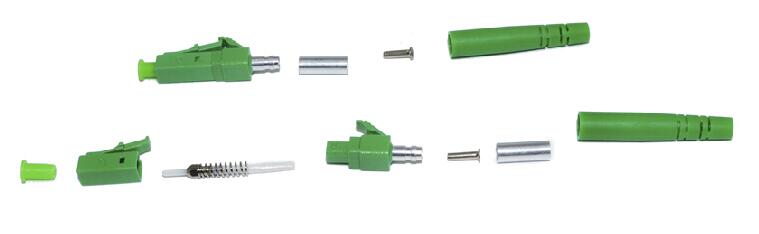

LC APC 2.0mm Connector
Specifications
LC Fiber Optic Connector 2.0mm-SM Assembled
Ceramic Ferrule
Insertion loss 0.2dB
RoHS Compliant
MOQ 100 pieces
Fiber Optic Connector -LC/PC-2.0mm-SM
FIBRE TELECOM supply FC, ST, SC, LC, MTRJ, DIN, E2000 Fiber optic connector produts
Main Specification
Insertion loss 0.2dB
High Return loss
Ceramic Ferrule
RoHS Compliant
Application:
Optical fiber sensor, telecommunication equipment.
Optic fiber communcation system, LAN.
Optic fiber data communication.
Optic fiber test equipment.
Features:
Low inertion loss.
High return loss.
Good repeatability.
Good interchangeability.
Single and duplex are arailable.
Order guide:
Fiber cores; Singel, dual.
Cable diameter(mm): 0.9 2.0 3.0
Fiber type: PC UPC APC
Connector type: SC, FC, LC, ST, MTRJ, DIN, D4
SPECIFICATIONS | ||
Single mode | Multimode | |
Insertion Loss | ≤0.20dB | ≤0.30dB |
Return Loss | PC ≥50 dB APC ≥60 dB | |
Durability | ≤0.2 dB typical change, 1000 matings | |
Operating Temperature | -40 to + 85°C | -40 to + 85°C |
Ferrule Spec
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: ≤3μm |
125.3+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: ≤3μm | |
125.5+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: ≤3μm | |
