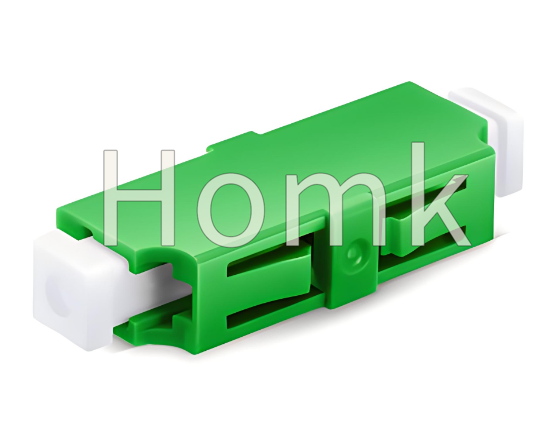

LC APC SX Fiber Adapter
Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.
They are available for use with either singlemode or multimode patch cables.
Homk provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability. like SC Fiber Optic Adapter, LC Fiber Optic Adapter, FC Fiber Optic Adapter, ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter, E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter
Features:
Good inerchangeability
Environmentally Stable and Reliable
Accurate Size
Excellent Return Loss
Applicable standard: IEC 61754-13
Complete Hybrid adapter
Technical Standard:
ZrO2 | |
Housing Material | Zn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue (plastic) |
Insertion Loss | 0.20dB max., 0.10dB typ |
Durability | 500 matings, 0.2dB max. increase |
Retention Force | 200~600grams |
Operating Temperature | -40ºC to +80ºC |
