Details

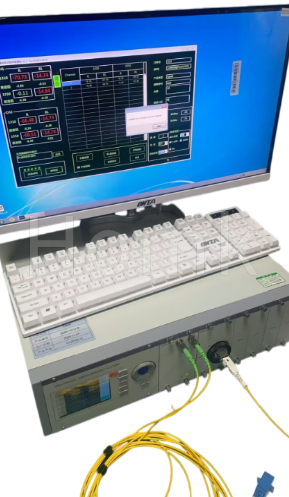

LC Duplex Patch Cord Back Reflection Test Meter HK-LCDX
Easy to opera te, single user interface
High power detection range
High sensitivity low for Return loss test
Build in Visible laser diode 650nm
Photodetector area 2mm,3mm
Wavelength(nm) | 1310/1550/850 650 | 850nm/1300nm | |
Laser Source | Laser Type | F-P | LED |
Stability(dB) | 0.03 | 0.03 | |
Insertion | Input range | 3 to 75 | 3 to 75 |
Test Uncertainty (dB) | 0.03 0~ 60dBm ) | 0.03 0~ 60dBm ) | |

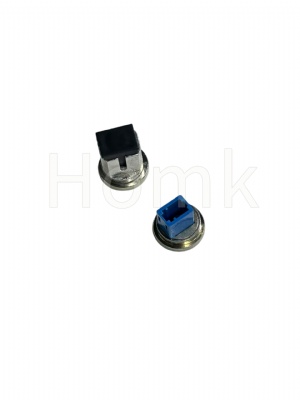

Interface | FC/SC /LC /Universe interface | FC/SC /LC /Universe interface | |
Return | Detect Range | 0-75 | 0-55 |
Test Accuracy(dB) 0.25 | 0.25 | 0.4 | |
Output interface | FC/APC | FC/APC | |
Control interface | RS232/ GPIB | ||
Power Supply | 110VAC/220VAC 50HZ | ||
Storage temperature (℃) | 25 to 70 | ||
Weight (kg) | 3 | ||
Dimension(mm) | 265*260*120 | ||
