Details

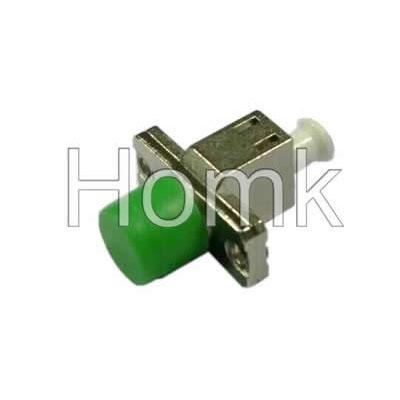

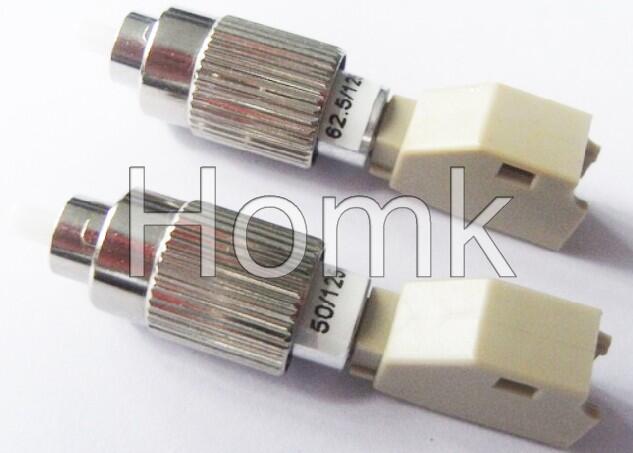

LC-FC fiber adapter
Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors.
Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system.
It has low insertion loss and high return loss.
We provide hybrid adapters bridging popular connector types, such as FC, SC, ST and LC.
Features:
- Insertion loss < 0.3dB
- Return loss > 50dB (SM)
- High repeatability
- High environmental stability
- Various of connector and adapter types
Specifications:
Mode | S.M (Zroz) | M.M (P.B) |
Insertion Loss | ≤0.2 dB | ≤0.3 dB |
Mating Durability(500 times) | ≤0.2 dB | |
Operating Temperature(°C) | -40°C~+75°C | |
