LC MM DX fiber Optic Adapter

Details

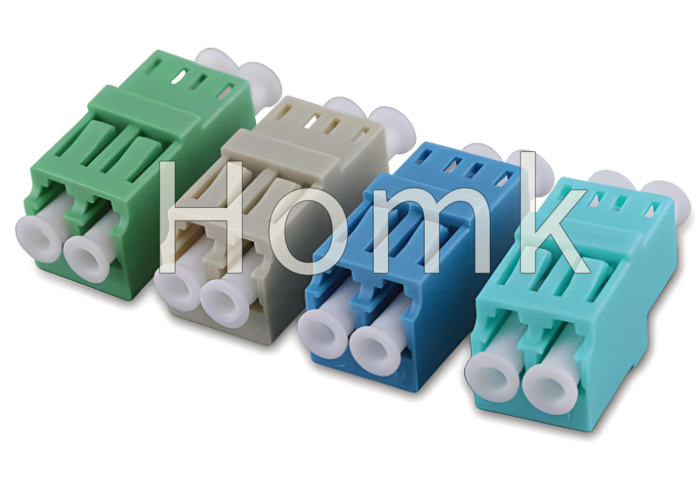

LC MM DX fiber Optic Adapter


Application

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks



Features

Low insertional loss and back reflection loss

High prcision alignment

NTT-FC compliance

Compact design

Choice of housing material and sleeve material

Nickel plated brass body

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance.

compatibility, repeatability

high precision size has good compatibility

resistance to friction ceramic casing

environmental stability good

card lock plug

provide separate ST type, SC type, FC type, LC type and so on many kinds of adapter.

ITEM

PARAMETER

Applicative   adapter type

SC,LC,FC,ST,E2000,MU,D4,DIN

Fiber   mode

Single   mode

Multi-mode

Adapter   color

Blue,   green, metal

Beige,   metal

Test   wavelength

1310nm,   1550nm

850nm,   1300nm

Insertion   Loss

typical≤0.15dB,Max≤0.20dB

typical≤0.15dB,Max≤0.20dB

Repeatability

≤0.10dB

Interchangeability

≤0.20dB

Durability

≤0.20dB Max change,1000 mating

Channels

Simplex,Duplex,4channels

Body   material

Plastic   or metal

Sleeve   material

Ceramic(ZrO2)   or Customized

Operating   Temperature

-20ºC to +70ºC

Storage   Temperature

-40ºC to +85ºC
