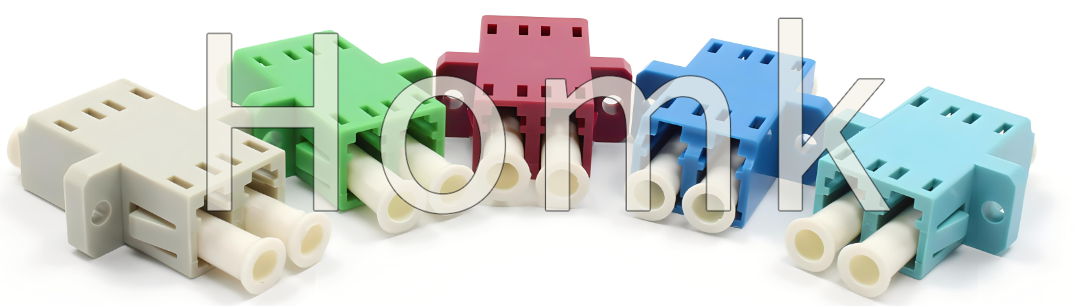

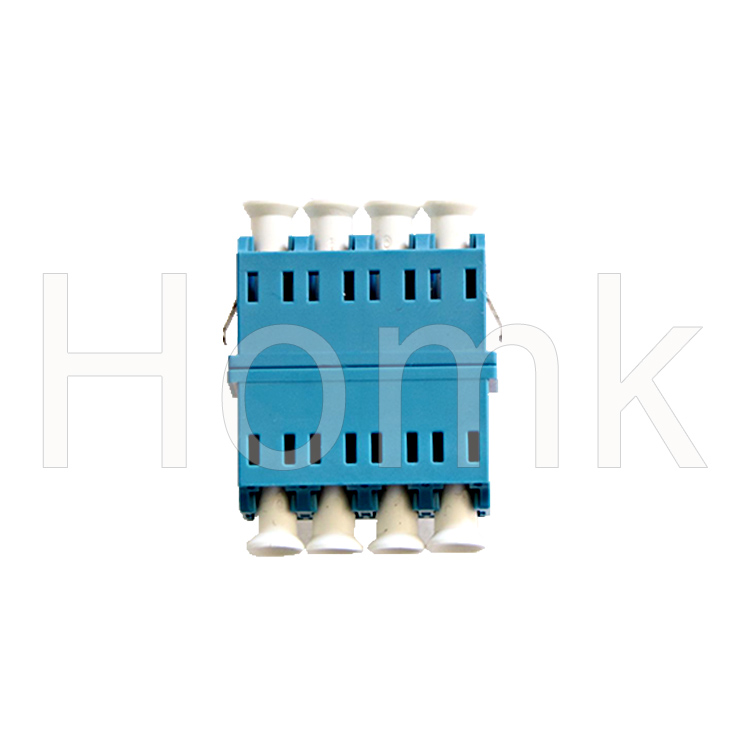

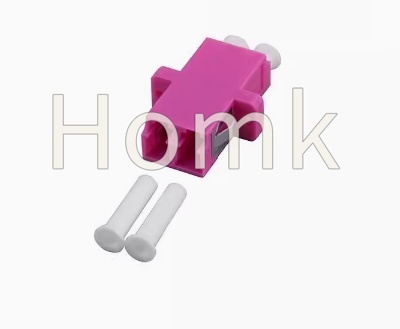

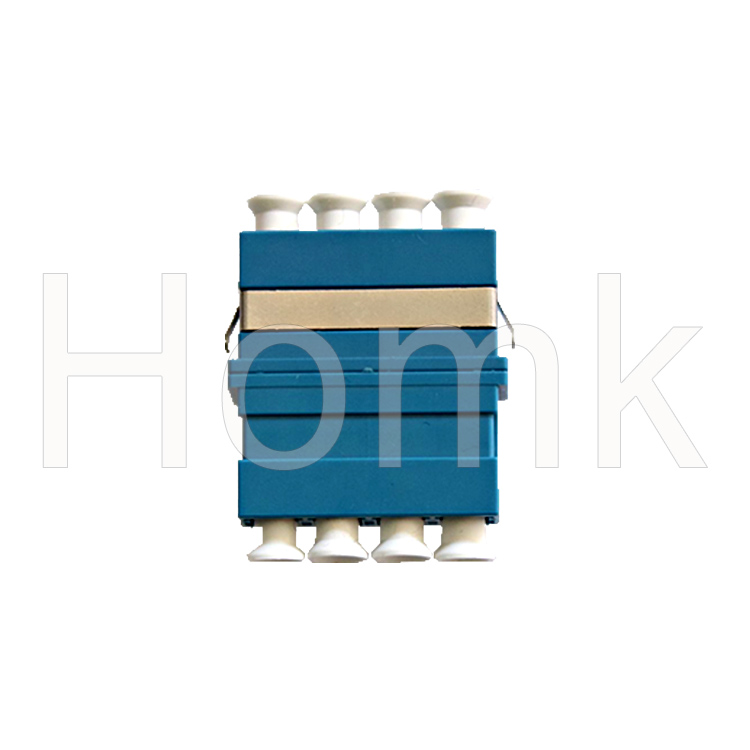

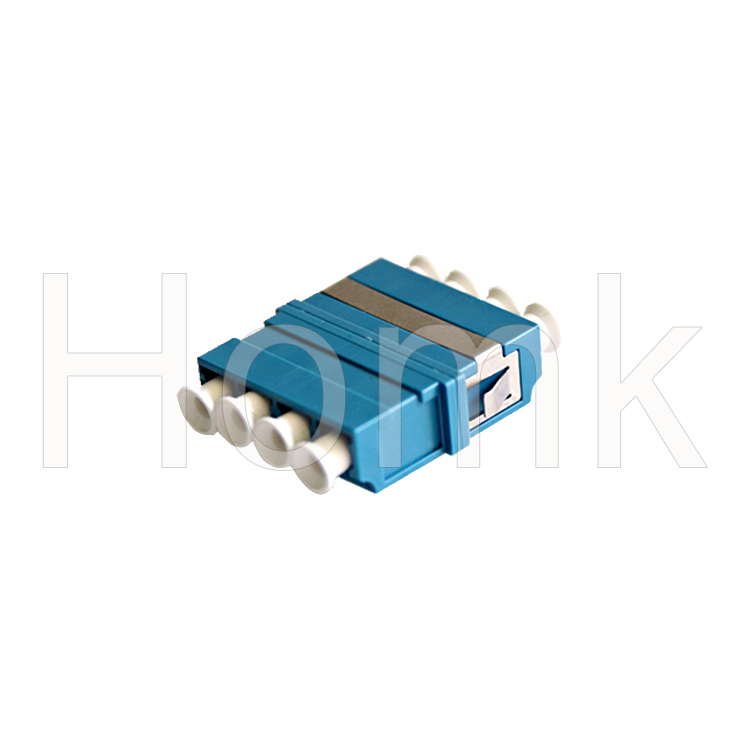

LC Fiber Optic Adapter
LC Fiber Optic Adapter, SC Fiber Optic Adapter, FC Fiber Optic Adapter,
ST Fiber Opitc Adapter, MU Fiber Optic Adapter, MTRJ Fiber Optic Adapter,
E2000 Fiber Optic Adapter, D4 Fiber Optic Adapter
Feature:
Good inerchangeability
Environmentally Stable and Reliable
Accurate Size
Excellent Return Loss
Applicable standard: IEC 61754-13
Complete Hybrid adapter
PARAMETER | ||
Applicative adapter type | SC,LC,FC,ST,E2000,MU,D4,DIN | |
Fiber mode | Single mode | Multi-mode |
Adapter color | Blue, green, metal | Beige, metal |
Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
Repeatability | ≤0.10dB | |
Interchangeability | ≤0.20dB | |
Durability | ≤0.20dB Max change,1000 mating | |
Channels | Simplex,Duplex,4channels | |
Body material | Plastic or metal | |
Sleeve material | Ceramic(ZrO2) or Customized | |
Operating Temperature | -20ºC to +70ºC | |
Storage Temperature | -40ºC to +85ºC | |
