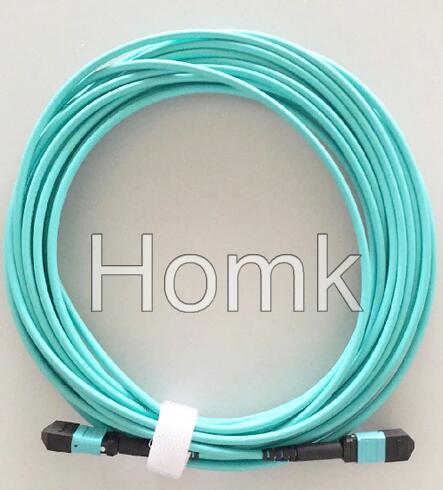

MPO-MPO OM3 Fiber Optic Patch Cord
Our optical fiber MPO patch cord is high return loss and low insertion loss ,Insertion loss of MPO fiber patch cord is less than 0.3dB,Return loss of fiber MPO patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability
SM | MM | |
Polish | UPC/APC | PC |
Insertion Loss | Typical ≤0.2dB | ≤0.25dB |
Return Loss | ≥50DB(PC) | ≥30dB |
Interchangeability | ≤0.2dB | |
Repeatability | ≤0.1dB | |
Durability | ≤0.2dB typical change, 1000 matings | |
Tensile Strength | > 10kg | |
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |
