Details

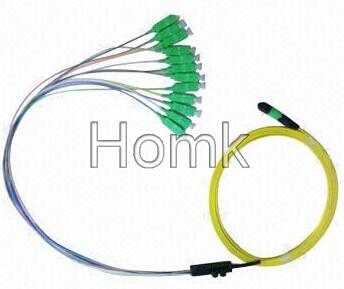

MPO to SC Fiber Patch Cord
High Performance in IL & RL
● 8,12 and 24 fiber connector terminations and assemblies
● MPO / MTP Male (with guidepins) assembled with 0.9mm cable to single-fiber connectors
● Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber types
Specifications：Connector type | MPO | LC or SC | ||
Fiber type | Single mode | Multimode | Single mode | Multimode |
Polishing type | Angle | Flat | UPC | |
Insertion Loss | ≦0.35dB | ≦0.2dB | ≦0.2dB | ≦0.2dB |
Return Loss | ≧55dB | N/A | ≧50dB | N/A |
Operating Temperature | -20°C ~ +70°C | |||
Storage Temperature | -40°C ~ +85°C | |||
