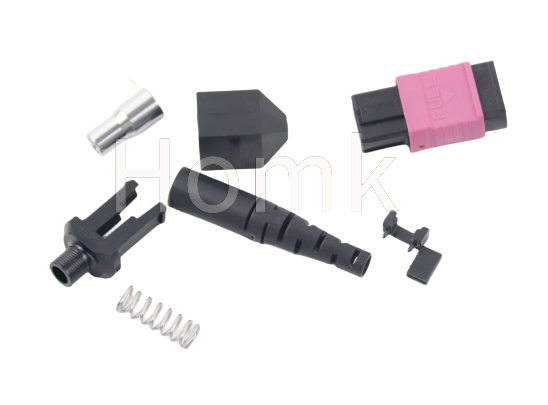

MTP 12 24Core MM OM4 Fiber Connector 0.9mm & 3.0mm
Optical fiber connector kits
Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB
Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature: -40 to 80
Ferrule Hole Sizes;
Singlemode:
125.0+1/-0um, concentricity ≤ 1.0um
125.5+1/-0um, concentricity ≤ 1.0um
126.0+1/-0um, concentricity ≤ 1.0um
Multimode:
125um concentricity ≤ 3um
127um concentricity ≤ 3um
128um concentricity ≤ 3um
Availablity:
-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.
-Clips are available for SC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
Light Characteristic:
Parameters | S. M | ||||
PC | UPC | APC | |||
Insertion Loss (Typical dB) | < 0.35dB | ||||
Return Loss(Typical dB) | > =45 dB | > =50 dB | |||
Mating Durability (500 cycles) | < =0.2dB | ||||
Temperature Stability | < =0.3dB | ||||
Operating Temperature°C | -40° C to +80° C | ||||
Storage Temperature°C | 40° C to +80° C | ||||
Connection Method | Push-on | ||||
