Details

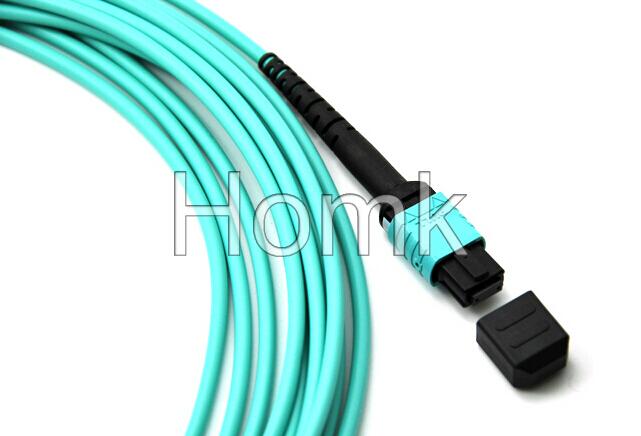

MTP Fiber Optic Pigtail
Feature:
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
8.Patch cords accord with bellcord GR-326 ,ISO9001,RoHS
Specification:
Single-model UPC | Single-model APC | Multi-model PC | |
Insert loss (dB) | ≤0.20 | ||
Max insert loss(dB) | ≤0.30 | ||
Repeatability(dB) | ≤0.10 | ||
Return loss (dB) | ≥50 | ≥60 | ≥35 |
Operating temperature | -20-+60 centigrade | ||
Storage temperature | -40-+85 centigrade | ||
