MTRJ fiber optic connector

Details

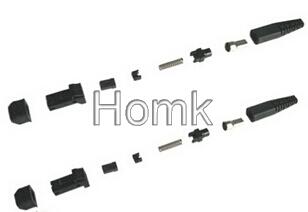

MTRJ fiber optic connector


Optical fiber connector kits

Insertion Loss: Single mode ≤ 0.2dB & Multimode ≤ 0.3dB

Return Loss: PC ≥ 50dB, UPC ≥ 55dB & APC ≥ 65dB

Durablity <0.2dB typical change, 1000 mating

Operating Temperature: -40 to 80

Ferrule Hole Sizes;

Singlemode:

125.0+1/-0um, concentricity &le; 1.0um

125.5+1/-0um, concentricity &le; 1.0um

126.0+1/-0um, concentricity &le; 1.0um

Multimode:

125um concentricity &le; 3um

127um concentricity &le; 3um

128um concentricity &le; 3um

Availablity:

-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.

-Clips are available for SC and LC duplex connectors

-PC and APC are available

-Boots in a variety of colors

Light Characteristic:

Item:

LC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc

Type:

Multi-Mode Single-Mode
Operating Wavelength 850nm& 1300nm 1310nm & 1550nm
Typical Insertion Loss 0.2dB & 0.2dB 0.2dB & 0.2dB
Mechanical Testing Repeatability  &le; 0.2dB
Durability > 1000 (Times)
Exchange &le; 0.2dB
Temperature Storage Temperature 25 ~+85&deg;c
Operating Temperature 25 ~+85&deg;c
Length, Color, Out-Diameter, Fiber counts According to the customers' requirement
