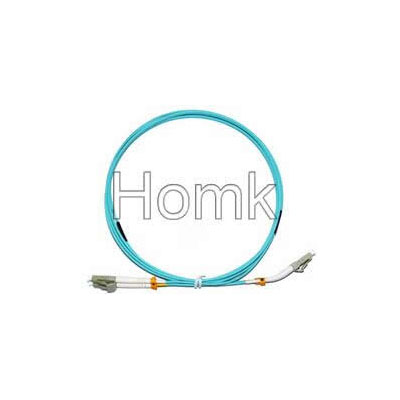

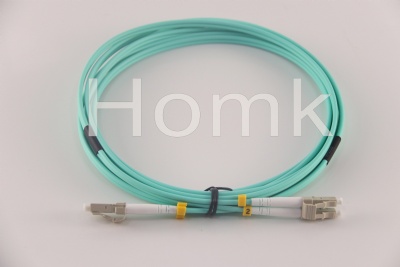

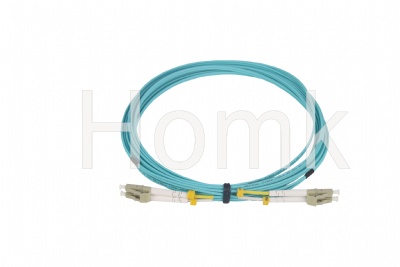

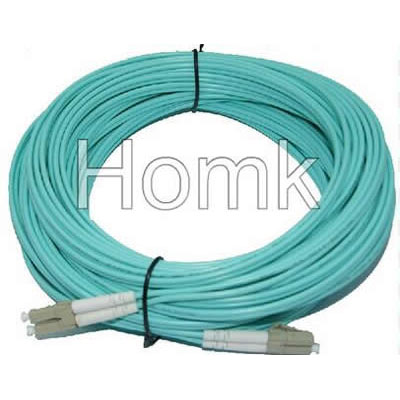

OM3 fiber patch cord
Our optical fiber patch cord is high return loss and low insertion loss ,Insertion loss of FC fiber patch cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB
Standard: IEC, Telcordia GR-326-CORE
Polish:PC/UPC/APC
Tensile strength: >10kg
Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability
Standard Fiber Cable Assemblies | ||
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
1310±30/1550±30nm | 850±30/1300±30nm | |
Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
TIA/EIA-455-107 | ≥55dB(APC) | |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | ||
Package | 1unit/bag | |
