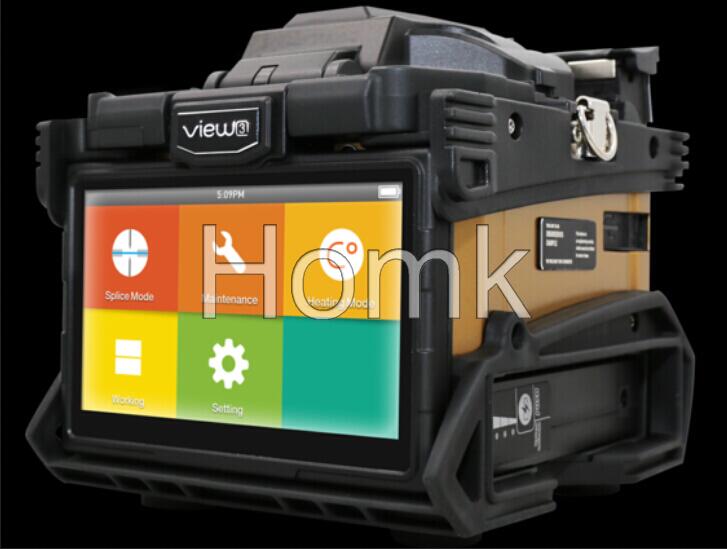

Original INNO View3 splicing machine

Specifications

• Model :View 3

• Dimension :143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)

• Weight : 2.31KG (with battery) / 1.95KG (without battery)

• Number of Fiber :Single

• Applicable Fibers :SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

• Compatible Fiber / Cable :0.25~3.0 mm / Indoor Cable

• Cleaved Length Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

• Splicing Mode :Preset 7 modes / Max 128 modes

• Typical Splice Loss SM: 0.02dB / MM:0.01dB / DS:0.04dB / NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)

• Return Loss :>>60dB

• Lighting :3 White LEDs

• Splicing Time Auto mode : 9 sec / Quick mode : 7 sec

• Estimated Splice Loss :Available

• Protection Sleeve Length: 20~60 mm

• Heating Time Typical heating time: 35 sec

• Results Storage :The last 2000 results

• Tension Test :1.96~2.25N

• Operating Condition Operating Altitude: 0~5000m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s

• Storage Condition : 0~95% relative humidity, -40~80°C

• Display: 90° bi-directional view, 5.0” Color High Resolution Display

• Fiber View & Magnification :X, Y, XY, X/Y : 520X Magnification

• Power Supply :AC Input 100-240V, DC Input 9-14V

• No. of Splice / Heating with Battery :4200mAh Battery Capacity, Typical 170 times (Splice+Heat)

• Operating Methods :Button / Touch screen

• Automatic Calibration : Automatic arc calibration by air pressure and temperature

• Electrode Life : 3500 arcs, can be extended by using an electrode grinder

• Terminal USB : 2.0 / MINI USB / HDMI

 Applications

1. FTTH&FTTX

2. Other optical transmission systems

3. Optical Signal Distribution

4. Telecommunication Network and fiber optic sensors

Specification:
