Details

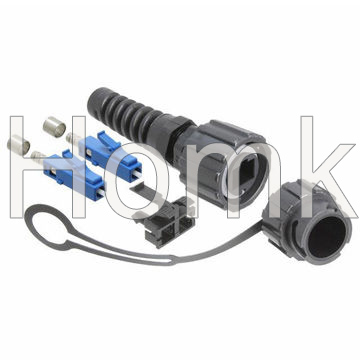

PDLC DX Waterproof fiber connectors
The waterproof connector offers high performance armor fiber cable assemblies that are designed for use in different harsh environments and offer better protection than standard patch cords.
Stainless steel tube prevents fiber damage, improves system stability and reduces maintenance costs. They are suitable for LAN systems, FTTH, intelligent fiber optic networks in buildings, underground networks, closed-circuit television systems, broadcast and cable
networks.The waterproof connector has a variety of styles, such as waterproof cable connector, outdoor waterproof connector, plastic waterproof connector, 12-core and 24-core waterproof connector.
SPECIFICATIONS (Hybrid type adapter)
| ITEM | PARAMETER | |
| Applicative adapter type | SC,LC,FC,ST,MU,D4,DIN | |
| Fiber mode | Single mode | Multi-mode |
| Adapter color | Blue, green, metal | Beige, metal |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Durability | ≤0.20dB Max change,1000 mating | |
| Channels | Simplex,Duplex,4channels | |
| Body material | Plastic or metal | |
| Sleeve material | Ceramic(ZrO2) or Customized | |
| Operating Temperature | -20ºC to +70ºC | |
| Storage Temperature | -40ºC to +85ºC | |
