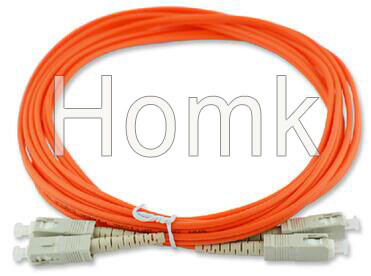

Fiber Patch cord (SC-SC DX MM)
SC fiber Patch cord has a molded plastic plug casing and a push/pull locking system.
SC patch cord Features: Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability
SC patch cord Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
SC/UPC patch cord Specification:
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
TIA/EIA-455-107 | (PC/UPC/APC) | (PC/UPC) |
Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
TIA/EIA-455-107 | ≥55dB(APC) | |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
