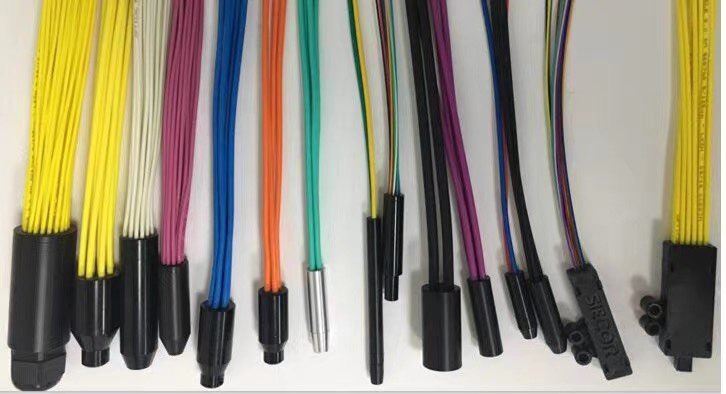

Round Cable Fan-Out Kit Series

Product Features: ◆ Wide range of optical cable applicability ◆ Choice of materials, specifications and sizes

Small in size, sturdy in structure, free design available

Easy to use, resistant to high temperatures, flame retardant, stable and resistant to tension

Input diameter: 1 - 20mm (produced according to customer requirements)

Output diameter: 0.9 - 20mm (produced according to customer requirements)

Product materials: iron/aluminum alloy/stainless steel/copper/non-metallic materials

Application scope:

Fiber tail-fiber patching, telecommunications base stations, FTTH, computer rooms, corridor monitoring, and various optical communication systems

Protects the optical fiber fusion connection part and the multi-core fiber fan-out part, increases curvature

Tensile strength, waterproof, sealing, etc.

Product name: Product name: Fiber Cable Fan-Out Kit

Product specification: 1x2 - 1x24 1xNcore Cable ID:2-20mm OD:O.9mm 2mm 3mm(As needed Custom processing

Customizable as needed)

Product application: Fixed and reinforced fiber optic protection sleeve for branch multi-core channel optical cable Fixed strengthened fiber protection casing branch multi-fiber

channel optical cable

Product material: SUS304 stainless steel (optional) Aluminum alloy/copper/POM

Surface treatment: Anodization (black color) / Electroplating (Nickelpla) ting/no

Product Packaging: Pearl cotton / Bubble bag / Plastic bag

plastic bag / Carton

Laser processing: Custom laser marking as per customer requirements for production Top

Product accessories: Main body of the splitter + Front section cap for splitter fixation

Usage method: Press-fit, fix with adhesive, seal with silicone, and apply heat shrink tubing for sealing Method of use: fixed glue sealing heat shrinkable tube sealing pressure
