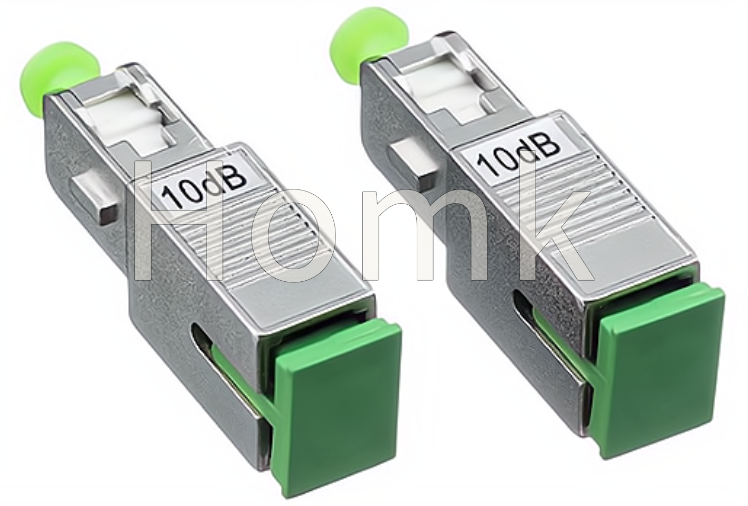

SC/APC Male to Female Attenuator 10dB
Specifications:
Male to Female Fiber Optical Attenuator
1-30dB is available
Good quality
Best price
Fast delivery
Features:
High power 1W continuous operation tested over 1000 hours
Precise attenuation
Return loss UPC >50 dB APC >60 dB
Low ripple broadband design for operation at both 1310 and 1550 nm
Attenuation range for SC, FC, and LC types 1 to 13 dB in 1 dB increments, 15 dB, and 20 dB
Applications:
Fiber optic systems
CATV and telecommunication systems
Receiver padding for optical receiver protection
Optical power equalization
Increasing dynamic range for apparatus
0 1 2 3 5 10 15 20 25 dB | |
Attenuation precision | <5dB±0.3dB |
Return loss | PC >45dB |
Operation wavelength | 1310nm and 1550nm(SM) |
Polarization loss | <0.1dB |
Operation temperature | -40℃ ~ +75℃ |
Storage temperature | -40℃ ~ +85℃ |
Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
-40 to +80 |
