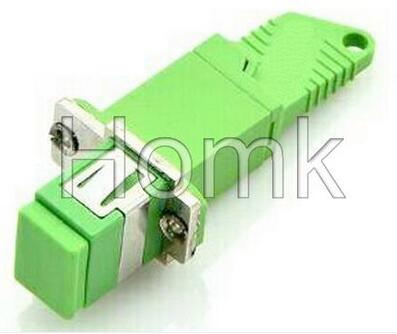

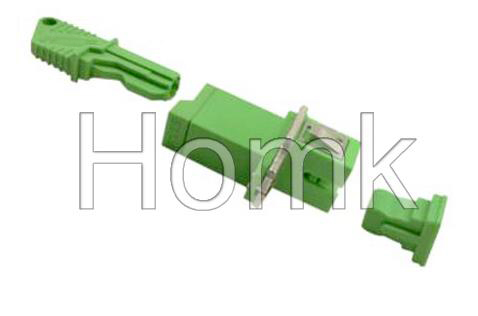

SC-E2000 APC Fiber Adapter
Hybrid optical adapters with male to female configuration are very useful in connecting patchcords with different connectors. Because both a connector plug (male) and an adapter socket (female) are provided, this hybrid adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system. It has low insertion loss and high return loss. We provide hybrid adapters bridging popular connector types, such as FC, SC, ST and LC.
Features:
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC,APC,UPC optional
Simplex / Duplex
Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Specification:
PARAMETER | ||
Applicative adapter type | SC,LC,FC,ST,E2000,MU,D4,DIN | |
Fiber mode | Single mode | Multi-mode |
Adapter color | Blue, green, metal | Beige, metal |
Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
Repeatability | ≤0.10dB | |
Interchangeability | ≤0.20dB | |
Durability | ≤0.20dB Max change,1000 mating | |
Channels | Simplex,Duplex,4channels | |
Body material | Plastic or metal | |
Sleeve material | Ceramic(ZrO2) or Customized | |
Operating Temperature | -20ºC to +70ºC | |
Storage Temperature | -40ºC to +85ºC | |
