SC-FC Male to Female Fiber Adapter (50/125)

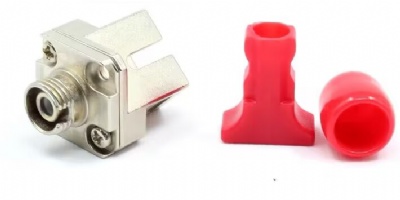

FC Female-SC Male Fiber Optic Adapter is specially designed to incorporate the Small Form Factor FC into SC configured environment. The compact design of FC Female-SC Male fiber Adapter enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Specification
Excellent Repeatability
Excellent Interchangeability
Low Insertion Loss
Good Temperature Characteristic
Fiber Adaptor Material: Plastic and metal available
Simplex or duplex female-male fiber optic adapter optional
Usage
Telecom, Access Network
Optical Fiber CATV
Terminal of the Devices and Multimedia
Testing and Medical Devices
Optical Fiber LAN and Access Network
Industry and Military Applications
Technical Data
PARAMETER | ||
Applicative adapter type | SC,LC,FC,ST,E2000,MU,D4,DIN | |
Fiber mode | Single mode | Multi-mode |
Adapter color | Blue, green, metal | Beige, metal |
Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | typical≤0.15dB,Max≤0.20dB | typical≤0.15dB,Max≤0.20dB |
Repeatability | ≤0.10dB | |
Interchangeability | ≤0.20dB | |
Durability | ≤0.20dB Max change,1000 mating | |
Channels | Simplex,Duplex,4channels | |
Body material | Plastic or metal | |
Sleeve material | Ceramic(ZrO2) or Customized | |
Operating Temperature | -20ºC to +70ºC | |
Storage Temperature | -40ºC to +85ºC | |
