SC green Cable Fiber Optic Patch Cord

Details

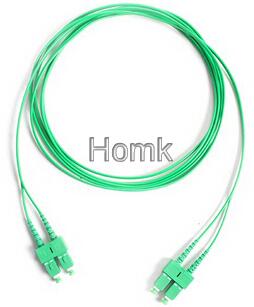

SC green Cable Fiber Optic Patch Cord


Our optical fiber patch cord is high return loss and low insertion loss ,

Insertion loss of FC fiber patch cord is less than 0.3dB,Return loss of fiber LC patch cord is UPC more than 55dB ,APC is more than 60dB

Standard: IEC, Telcordia GR-326-CORE

Polish:PC/UPC/APC

Operating temperature range: -40°C--80°C

Storage temperature range: -40°C--80°C

Tensile strength: >10kg

Fiber cable diameter: 0.9mm, 2.0mm, 3.0mm fiber is available,Fiber jacket PVC or LSZH cable is available,Fiber FC optic patch cord with excellent changeability and repeatability

Spec.

fiber optic patch cord

Insertion loss

Less than 0.2dB

Return loss

MM more than 35dB

SM more than 55dB

APC more than 60dB

Repeatability

Less than 0.2dB

Changeability

Less than 0.1dB

Operting termperature

 -40°C~80°C

Storage temperature

 -40°C~80°C

Tensile strength

>10kg

Min.bending radius

35mm

Length

Customized
