SCPC DXMM Fiber Optic Connector
Specifications
Insertion Loss; Single mode<=0.2dB & Multimode<=0.3dB
Return Loss; PC>=50dB, UPC>=55dB & APC>=65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature; -40 to 80
Ferrule Hole Sizes;
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode;
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
AVAILABILITY

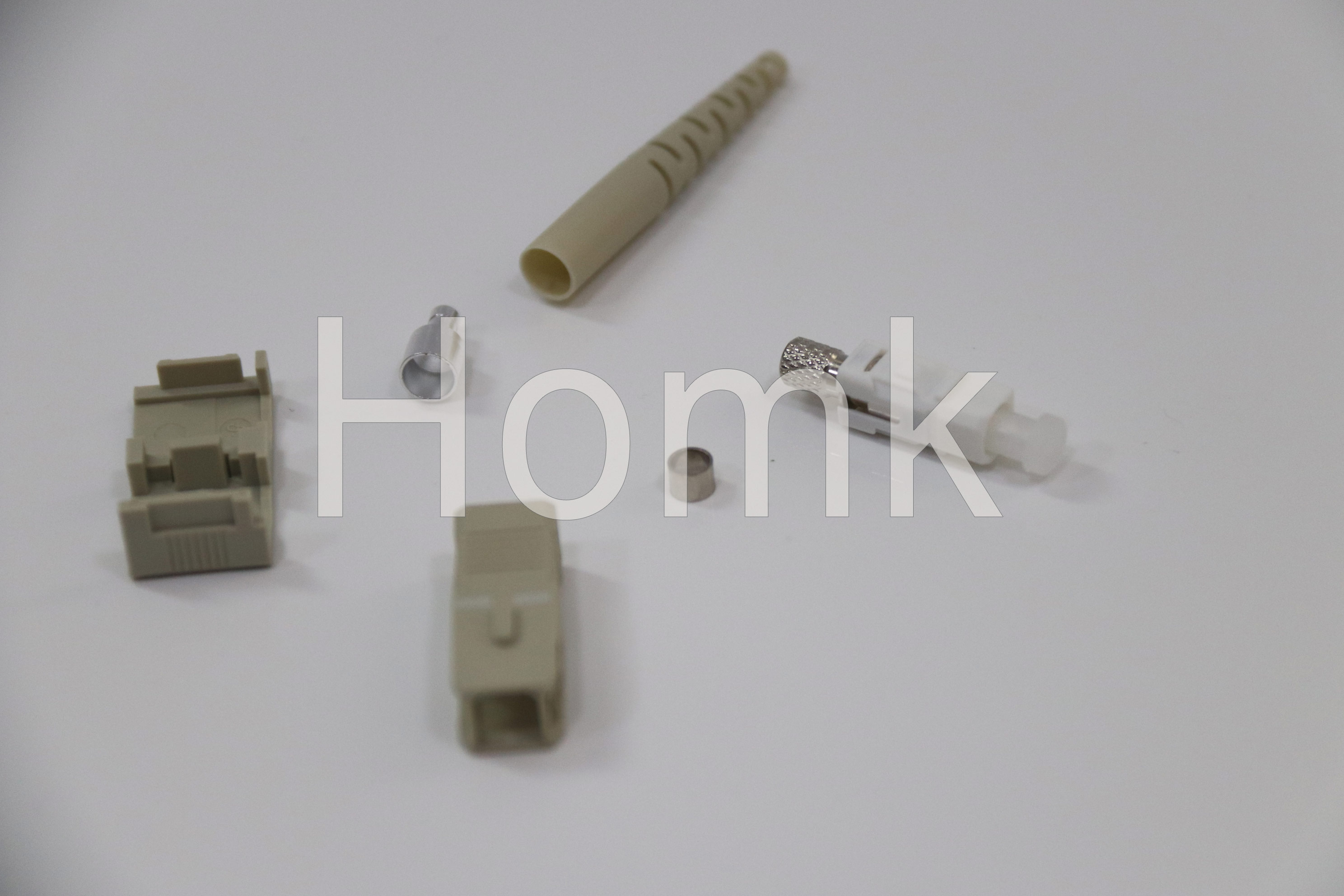

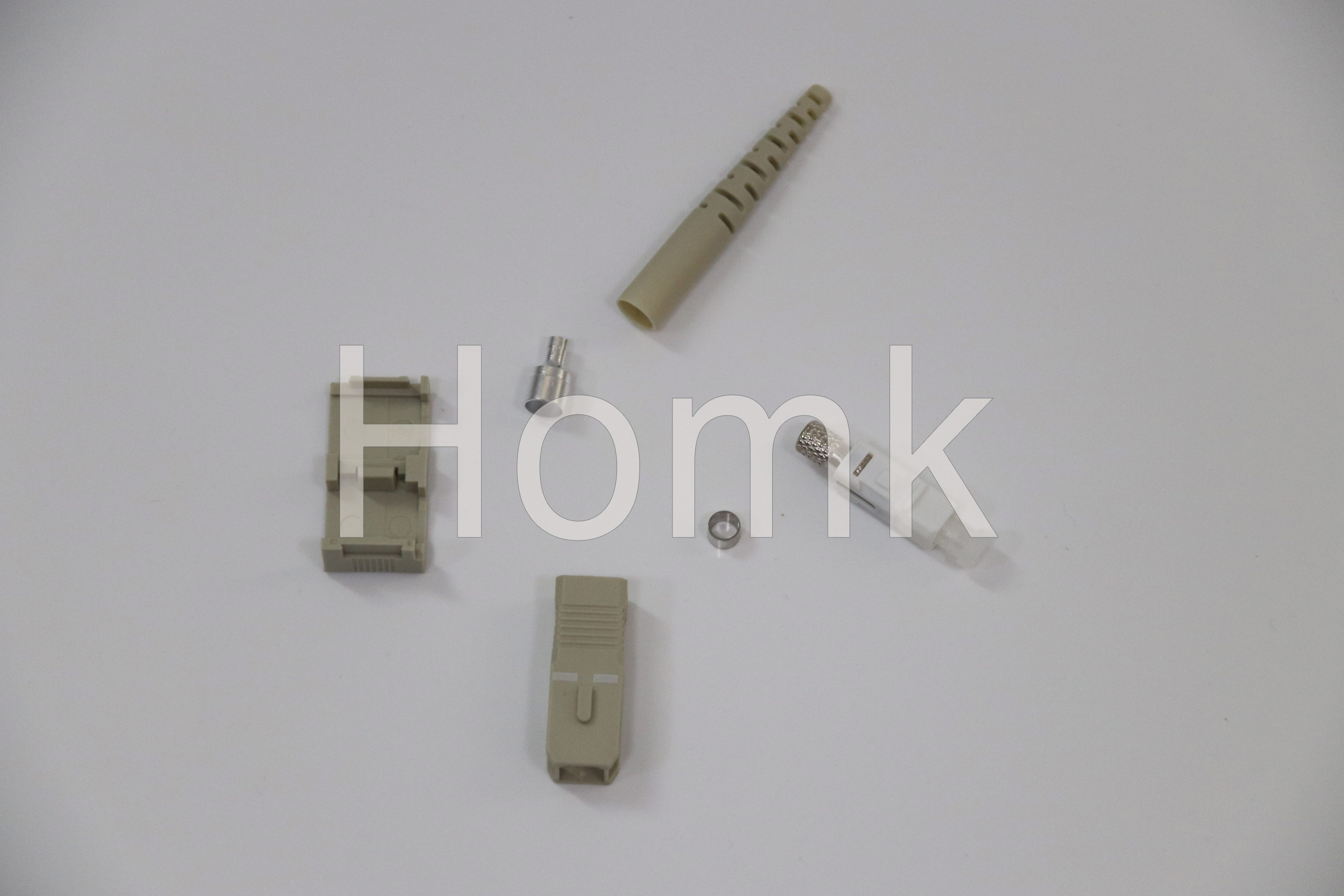

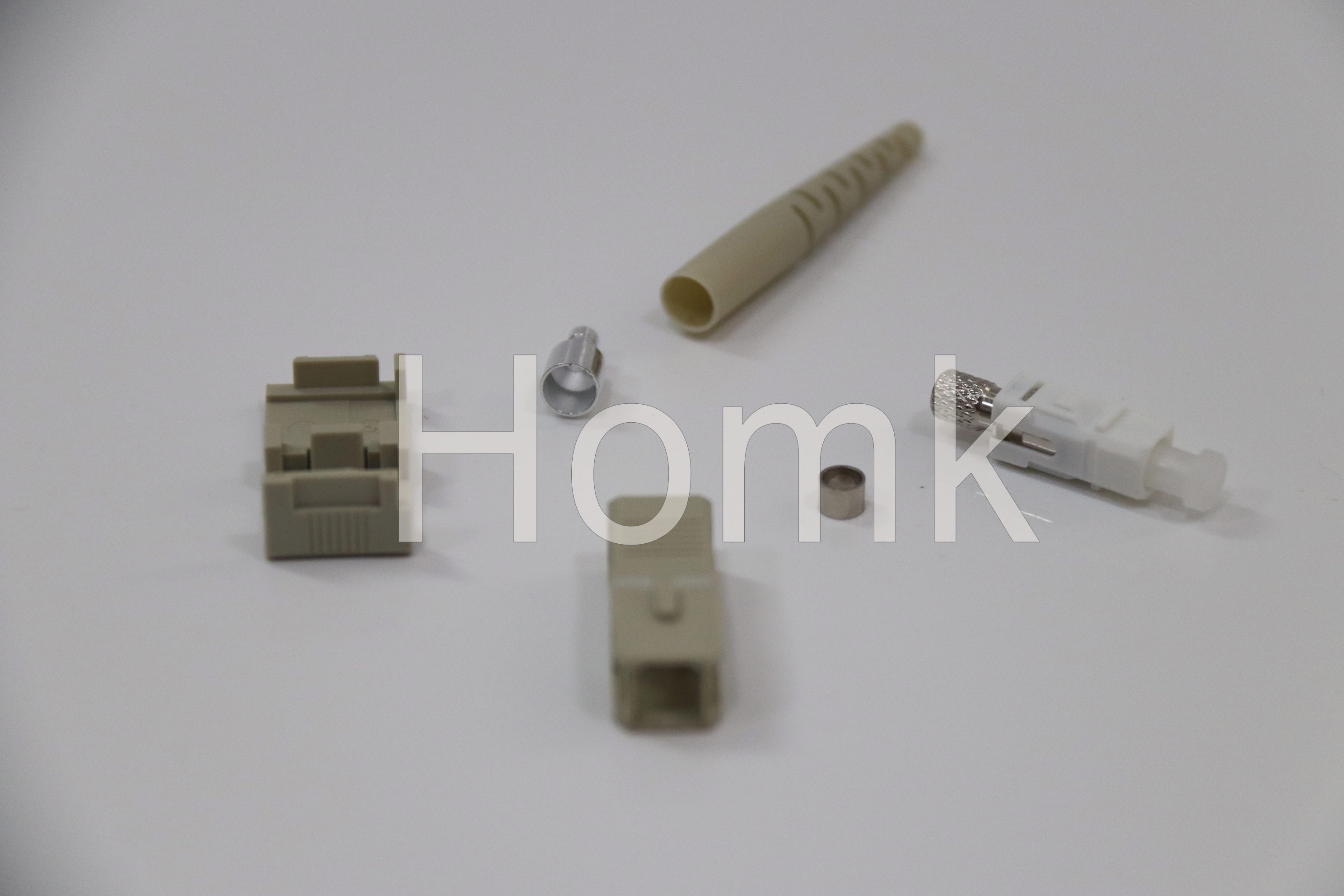

-The connector can be supplied as a pre-assembled one piece connector or as connector kits and one piece.

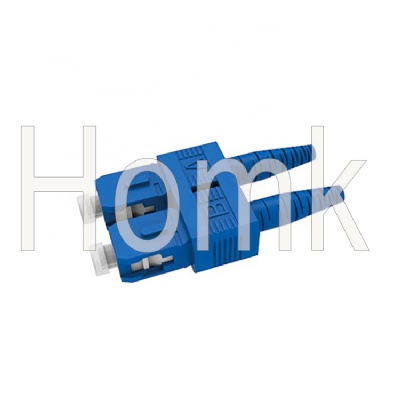

-Clips are available for SC and LC duplex connectors
-PC and APC are available
-Boots in a variety of colors
GST
Company with own injection workshop, press workshop, specializing in
fiber optic connector and connector kits produce and export.
Main type
SC/PC, SC/APC, FC/PC, LC/PC, ST/PC, FC/APC
3.0MM, 2.0MM, 0.9MM,
Singlemode, multimode available
2. Specifications: | ||||||
Items | Single mode | Multimode | ||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |
Insertion Loss | <0.2dB | <0.3dB | ||||
Return Loss | >45dB | >50dB | >60dB | 35dB | ||
Durability | <0.1dB typical change,500 matings | |||||
Operating Temperature | -40 to +75 | -40 to +75 | ||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:1um | 125um,Conectricity:1 to 3um | ||||
125.3+1/-0um, Conentricity:1um | 127um,Conectricity:1 to 3um | |||||
125.5+1/-0um, Conentricity:1um | 128um,Conectricity:1to 3um | |||||
126.0+1/-0um, Conentricity:1um | ||||||
