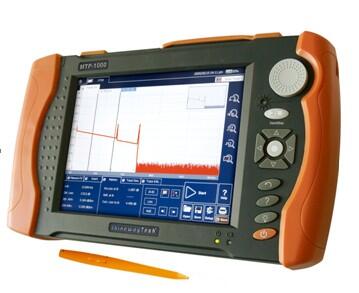

MTP-1000 OTDR
MTP-1000 OTDR is a compact modular platform with up to 3 functional modules, which is specially
designed for FTTx/PON applications and can meet all test requirements of installers,MTP-1000 OTDR can test SM with MM. contractors and service operators during network installation, service activation,maintenance and troubleshooting.
MTP-1000 OTDR Designed for Metro, Access and FTTx Networks
MTP-1000 OTDR be Flexible wavelength configurations to meet different requirements.
FTTX in-service test (1625nm with filter)
PON OTDR tests through splitter(ge;1 times;64), splitter and fiber-end identifiable.
Pass-through PON Power Meter simultaneously measures Triple-play
PON signals (1310/1490/1550nm)
Visible Fault Locator fast locates defective connectors, faults in macrobends, patch cords and patch cord panels
Remote/local control by PC
Optical Connector Inspector checks connector and fiber termination for polish quality and cleanliness
MTP-1000 OTDR Optimized Platform Performance
Lightweight
8.4 inch touch screen
Excellent Man-Machine interface for easy operation
Damp-dust-shock proof
Knob and touchpen combination:
Fast and easy handling
Optimized power management: 7 hours continuous operation
Fast power up with Windows CE
| Platform | ||||||
| Display | 8.4 inch TFT Touch Screen (800×600) | |||||
| Connectivity | USB×2; 10/100Mbit/s RJ-45×1 | |||||
| Memory | 2GB | |||||
| Power Supply | Li-Ion Battery/AC Adapter | |||||
| Battery Life | 7 hours continuous operation | |||||
| Weight | 2.1kg (Platform only) | |||||
| Dimensions (H×W×T) | 320×190×70mm(Platform only) | |||||
| OTDR Module | Wavelength (±20nm) | Dynamic Range (dB) | EDZ(m) | ADZ(m) | ||
| MOT200-20VD | 1310/1550 | 45/43 | 1.5 | 8/10 | ||
| MOT200-30VC | 1310/1490/1550 | 38/37/37 | 1.5 | 12 | ||
| MOT200-31VC | 1310/1550/1625 | 38/37/37 | 1.5 | 12 | ||
| MOT200-32VC | 1310/1383/1550 | 38/37/37 | 1.5 | 12 | ||
| MOT200-40VC | 850/1300/1310/1550 | 21/24/38/37 | 1.5 | 8/8/10/12 | ||
| MOT200-41VC | 1310/1490/1550/1625 | 38/37/37/37 | 1.5 | 12 | ||
| SelectableRange | 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240Km | |||||
| Pulse Width | 5ns,10ns,30ns,100ns,300ns,1µs,2.5µs,10µs,20µs | |||||
| Averaging Time | Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s | |||||
| Emitter Type | LD | |||||
| Connector | FC/PC (Interchangeable SC, ST) | |||||
| Distance Measure Accuracy | ±(1m + 10 -5 ×distance + sampling space) | |||||
| Attenuation Detect Accuracy | ±0.05 dB/dB | |||||
| Reflection Detect Accuracy | ±4 dB | |||||
| Visible Laser Source | Output Power ≥ -3dBm; MOD Frequency: 1Hz; Detecting Range: 5Km | |||||
| MCI100 Optical Connector Inspector Module | ||||||
| Field of View | 400µm×300µm | |||||
| Resolution | ≤1.5µm | |||||
| Focusing | Manual Focus | |||||
| Hand Probe Dimensions | Ø32×175mm | |||||
| MPN200 General Loss Tester Module: PON Power Meter | ||||||
| CAL Wavelengths | 1310 | 1490 | 1550 | |||
| Measurement Range | -40 ~ +10dBm (1) | -40 ~ +12dBm | -40 ~ +20dBm | |||
| Spectral Passband | 1310±50nm | 1490±15nm | 1550±10nm | |||
| Power Uncertainty | ≤ 0.5dB | |||||
| Display Resolution | 0.01dB | |||||
| Insertion Loss | ≤ 1.5dB | |||||
| MPN200 General Loss Tester Module: Stabilized Laser Source | ||||||
| Wavelength | 1310,1490,1550,1625nm (±20nm) | |||||
| Emitter Type | FP-LD@1310,1490,1550nm; DFB-LD@1625nm | |||||
| Output Mode | CW, 270Hz,1KHz,2KHz | |||||
| Spectrum Width | ≤5nm | |||||
| Output Power | ≥ -3dBm | |||||
| Power Stability | ±0.05dB/15min; ±0.10dB/8hr | |||||
| Connector | FC/PC (Interchangeable SC, ST) | |||||
| MPN200 General Loss Tester Module: Optical Power Meter | ||||||
| CAL Wavelength | 850,1300,1310,1490,1550,1625nm | |||||
| Power Range (dBm) | -70~+10 (2) | -50~+27 | ||||
| Accuracy | ±5%±0.01nW (±0.5dB@850nm) | ±5%±1nW (±0.5dB@850nm) | ||||
| Detector Type | InGaAs | |||||
| MOD Identification | 270,1K,2K Hz | |||||
| Resolution | 0.01dB | |||||
| Connector | FC (Interchangeable SC, ST) | |||||
