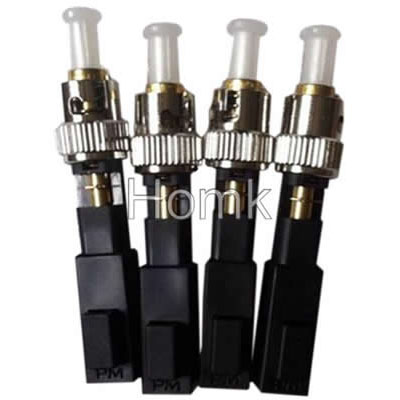

ST UPC SM Pre-Polishing Fast Connector

Details

ST UPC SM Pre-Polishing Fast Connector


Applications:
Fiber Optic Communication System and Telecommunication networks
Fiber Optic Data Transmission
CATV network
Optical Access Network
Fiber to the Subscriber (FTTX) applications
Optical Cable Interconnection
Maintenance or emergency restoration of fiber networks
Repair/Replacement requirements
Fiber Optic Equipment
Features:

1.FTTH project usable
2.Field installable
3.Insert loss less than 0.3dB Max 0.5dB
4.Metal V-shape cavity work well in high and low temperature
5.Installation less than 1 minutes
6.Reliable and superior optical performance
7.Cable Tensile test complies with Telcordia GR-326-CORE

Specifications:



 Parameters

Specifications

Connector Type

SC/LC/FC/ST

Dimension

50mm

Cable Diameters

0.9/2.0/3.0mm

Fiber Mode

SM/MM

Grinding end-face

UPC/APC

Insertion Loss

UPC

APC



≤0.5dB

≤0.5dB

Return Loss

UPC

APC



≥45dB

≥50dB

Tension Test

≥100N

Operating Temperature

-40℃~+75℃
