Details

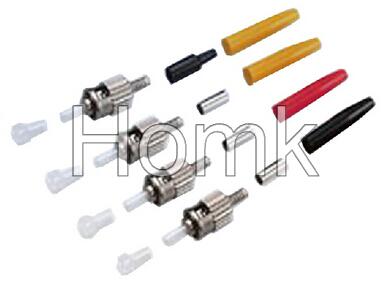

ST fiber connector 0.9mm
1. Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
2. Specifications:
Items
Single mode
Multimode
PC
UPC
APC
62.5/125
50/125
50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
>45dB
>50dB
>60dB
35dB
Durability
<0.1dB typical change,500 matings
Operating Temperature
-40 to +75
-40 to +75
Ferrule Hole Sizes
125.0+1/-0um, Conentricity:1um
125um,Conectricity:1 to 3um
125.3+1/-0um, Conentricity:1um
127um,Conectricity:1 to 3um
125.5+1/-0um, Conentricity:1um
128um,Conectricity:1to 3um
126.0+1/-0um, Conentricity:1um
