Yogokawa AQ1200 OTDR

Details

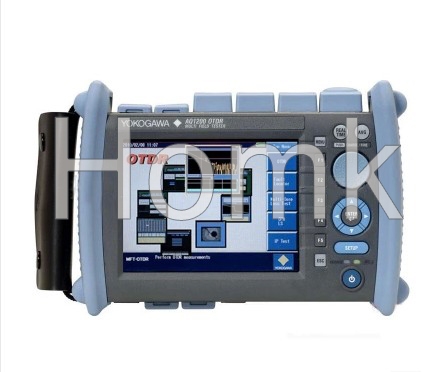

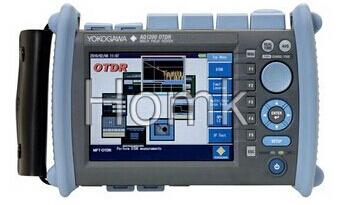

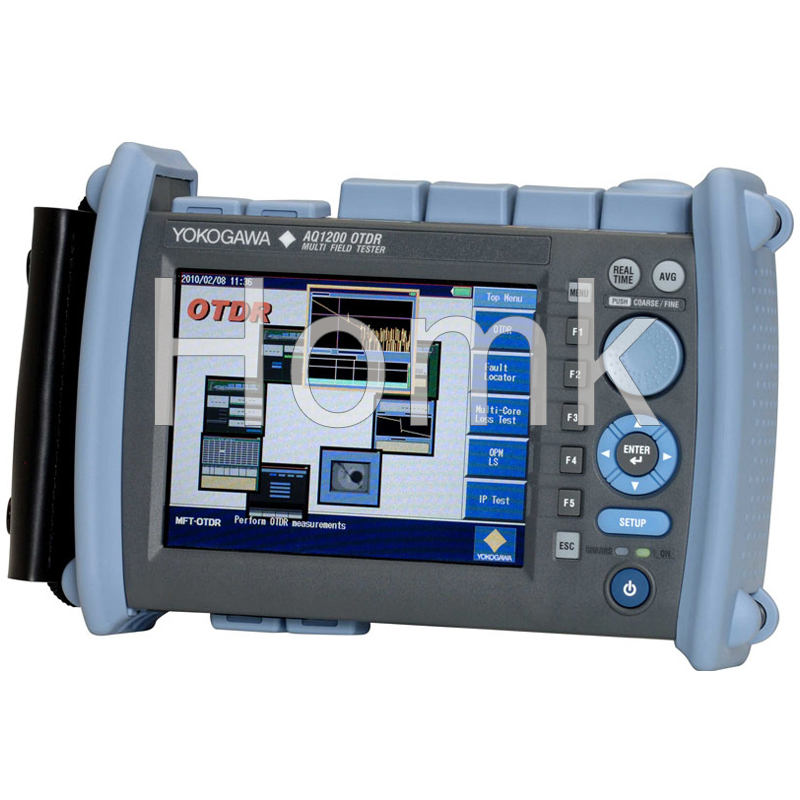

Yogokawa AQ1200 OTDR


The AQ1200 is the newest addition to Yokogawa's OTDR product family offering an even smaller and lighter alternative to the AQ7275 models. Like the larger AQ7275, it also offers an industry leading 0.8m event dead zone as well as the convenient capability to display a fiber connector inspection probe using one of the unit's standard USB I/O ports. Tradeoffs compared to the larger AQ7275 include omission of the built-in launch fiber option, limited to SMF fiber only and a reduced dynamic range of 32dB



Features

  • OTDR that supports SM1310/1550nm with a short 80 cm event dead zone

  • Quick power on for faster operations

  • Able to display trace and event information at the same time.

  • Full auto mode for novice users and information tips for more experienced users.

  • Bright LCD screen for easy viewing inside buildings and outside.

  • Includes Fault Locator functions for fast measurements.

  • Supports external USB Video fiber inspection probe.



    ModelsAQ1200A
    Wavelength(nm)

    1310/1550 ±25nm
    Distance range500m,1Km,2Km5km,10km,20km,50km,100km,200km
    Pulse width3ns,10ns,20ns,50ns,100ns,200ns,500ns,1us,2us,5us,10us
    Dynamic range500m,1Km,2Km5km,10km,20km,50km,100km,200km
    Event dead zone0.8m
    Attenuation dead zone5/5m (typ)
    Applicable fiberSM (LTU-T G.652)
    Optical connectorSC,F C,ASC
    Laser class1M
    Display5.7 inch color LCD (640X480)
    Battery operation time6hours
    lnterfaceUSB portUSB1.1 TYPE A X 1,TYPE B (mini)   x 1
    DC poweFor AC adapter
    Dimensions217.5(W) X157(H) X 74(D) mm
    MassApprox . 1kg (incl. Protector   and internal battery
