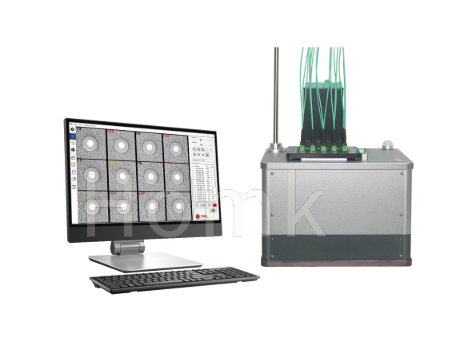

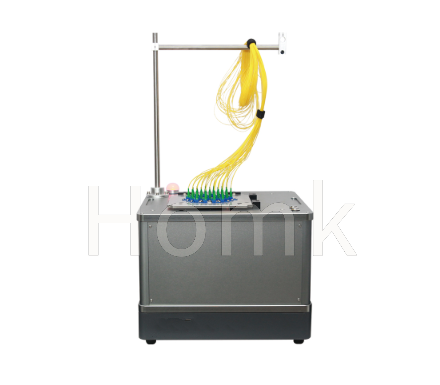

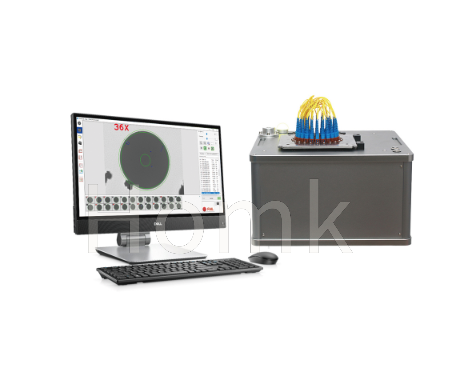

Full Auto Fiber Microscope HK-YM

The centralized multi-head fully automatic end face instrument completely changes the traditional

manual inspection mode. There is no longer the need for personnel to operate and monitor.

The equipment can be seamlessly integrated into the production process and perform batch

end face judgments with ease and flexibility. It simplifies the time-consuming and labor-intensive

steps of traditional end inspection, directly creating real value of cost reduction and efficiency

 improvement for enterprises. It is a reliable practitioner of achieving new quality productivity

and makes end inspection no longer a burden.

1: No need for manual supervision. Just press the button to start, and the entire process will be automatically completed for detection and determination;

2: The highest detection accuracy is 0.5um, with a consistency rate of over 95%. When combined with a secondary rapid recheck by manual intervention during sorting, the consistency rate reaches 100%;

3: No need for repeated manual detection. The fastest time is just one second, which can replace 7 end inspection stations;

4: Supports user-defined detection standards;

5: Supports rapid positioning detection for any size grinding discs or other customized fixtures;

6: Supports continuous or intermittent detection by users, as well as handling results at dual stations, etc.

Main features

● No need for constant supervision. With just one click, the entire process can be automatically completed for the detection and determination.

The detection resolution is 0.5 microns, with a consistency rate of over 99.7%. Combined with manual sorting for rapid rechecking, the consistency rate reaches 100%.

High-precision fixture sampling for focusing, analysis and judgment. Each end face only requires one second, which can replace 7 end inspection stations.

● Built-in IEC/IPC international standards, supporting user-defined detection standards;

● Supports rapid positioning detection for over 95% of the various types of grinding discs or other custom fixtures;

● Supports continuous or intermittent detection by users, as well as processing results at two workstations, and the equipment continues to operate during sorting.

● Multiple display interfaces are available, allowing for quick switching, which is convenient for meeting the requirements in different scenarios.

● Desktop-style independent design, facilitating easy relocation to any workstation;
