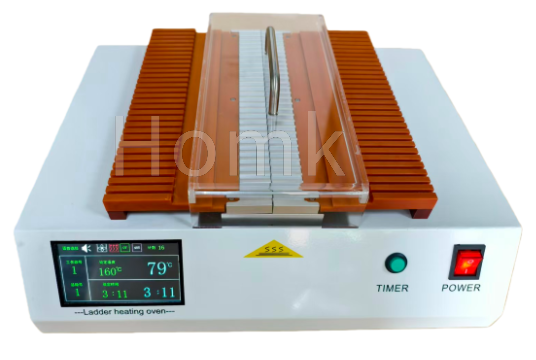

Staged Heating Fiber Curing Oven HK-100S
Thank you for purchasing the HK-100S Segmented Fiber Optic Heating Curing Furnace. The oven Segmented Heating and Curing Furnace adopts LCD screen display, and the temperature control can be controlled in sections, and can be heated at constant temperature.
This curing furnace adopts industrial-grade control chip, which integrates PID control algorithm for temperature heating control, timing function in one, with voice prompt function, buzzer prompt function, fan rapid cooling, RS485 communication interface. It provides a good human-machine interface interface, effectively improves the curing speed, and is suitable for different temperature heating needs of various types of products. This product has the characteristics of easy use, stable and efficient performance. Please read the instruction manual carefully before using this product.
Specification/project | HK-100S |
LCD display | 4.3-inch LCD display |
Segmented heating function | It is divided into 1~3 stages of stepped heating, and each stage has different temperatures; It can be set to 1 stage constant temperature |
Temperature range | 1～230℃ |
Segmented timing function | It is timed in 1~3 sections, and each section has a different time |
Timing range | 1second ~ 99 minutes 60 seconds |
Voice function | When the set temperature is set, it prompts "Please put it on a plate", and when the heating time ends, it prompts "Please remove the plate". |
Prompt function | The machine is set with a "drip" or "drip" tone |
Cooling function | Fan fast cooling function |
Communication interface | RS485 communication interface |
Operating voltage | AC110V/60Hz,or AC220V/50Hz |
The power of the whole machine | 1000W |
Machine size | 405×320×135mm |
Machine weight | 8.5KG |
Package size | 480×390×190MM |
