12-288 core mini breakout optical cable

Details

12-288 core mini breakout optical cable


Indoor fiber cable Specifications

Mini Core Fan-out Indoor Fiber Cable
1. 12~288 Fibers
2. Small cable diameter
3. Easy for splicing and cabling

OVERVIEW

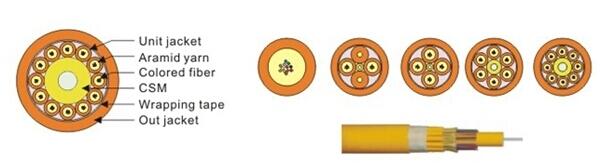

288 colored fibers are divided into 24 units, and each unit is with aramid yarn strength member and inner jacket. The cable units are stranded around the FRP central strength member, bound by wrapping tape and outer jacket. Standard cable jacket color is yellow for singlemode and orange for multimode. Customized colors and flame-retardant materials are available upon request.

 Indoor Fiber Cable Features:

1.  Each unit consists of max.12 colored fibers, is with independent aramid yarn strength member and inner jacket, which provides good mechanical performance.

2.  Small cable diameter, ideal for large capacity data transmission.

3.  High strength, good bending, easy for splicing and cabling.

4.  Cable jacket materials and colors are upon request.

5.  RoHS Compliant.



APPLICATION

1.  Indoor horizontal and vertical cabling.

2.  As fan-out pigtails and patch cords for communication equipment.





TEMPERATURE RANGE

Storage Temperature: -20°C~+70°C
Operation Temperature: -20°C~+70°C





CABLE SPECIFICATIONS

Fiber

Number

Outer     Diameter

Cable

Weight

Max.   Tensile  Strength

Max.   Crush  Resistance

Short /   Long Term

Short /   Long Term

Unit

[mm]

[kg/km]

[N]

[N/100mm2]

12

3.0±0.15

7.8

150 / 80

500 /   150

24

4.2+/-0.3 7.0+/-0.4

31

300/160

100/300

24

9.0±0.5

72

300 /   160

1000 /   300

36

9.0±0.5

78

500 /   180

1000 /   300

48

9.0±0.5

79

600 /   200

1000 /   300

72

11.2±0.5

126

1000 / 300

1000 / 300

96

13.5±0.5

178

1000 /   300

1000 /   300

144

17.5±0.5

285

1000 /   300

1000 /   300

288

20.8±0.5

372

1000 / 300

1000 / 300
