2-24 Cores Distribution Loose Tube
Product Name:Indoor fiber cable
Model:12 Core Distribution Loose Tube Optical Cable
Indoor fiber cable Application：
☆.The indoor fiber cable adopted to indoor distribution.
☆.As pigtail of communication equipment.
☆.The indoor fiber cable is suitable for communication equipment served.
☆.Indoor fiber cable is suitable for floor connection.
☆.The indoor fiber cable adopted to indoor distribution.
☆.As pigtail of communication equipment.
☆.The indoor fiber cable is suitable for communication equipment served.
☆.Indoor fiber cable is suitable for floor connection.

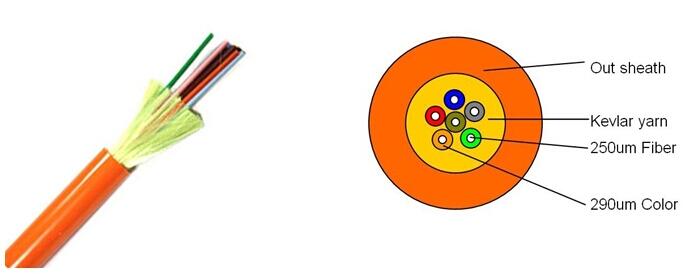

Indoor Fiber Cable Characteristics:
☆.Hight strength Kevlar yarn member.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.
Cable Count | Out sheath Diameter | Fiber Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load （N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
(MM) | (UM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
2 | 2.0 | 250 | 4.25 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
4 | 2.0 | 250 | 4.25 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
6 | 3.0 | 250 | 7.5 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
8 | 3.0 | 250 | 7.5 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
12 | 3.0 | 250 | 7.5 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
24 | 3.0 | 250 | 8 | 300 | 150 | 300 | 150 | 20D | 10D | -40+60 |
Optical Characteristics | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C、D) | B1.1:Conventional fiber | ||
G.653 | B2: Zero dispersion shifted | |||
G.654 | B1.2 :Cut-off wavelength shifted | |||
G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
