FTTH Fiber Fusion Splicer(AV6471A)

Details

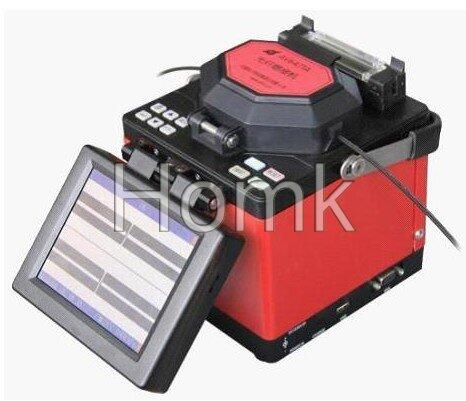

FTTH fiber fusion splicer (AV6471A)


The fiber fusion splicer(AV6471A )is FTTH fiber splicing machines is a new design of the optical fiber in equipment. In the light of the special FTTH environment. FTTH fiber fusion splicer manufactured by China goverment, and only shortlisted FTTH fusion splicer in China, most main projects must choose this type AV6471A FTTH fusion splicer.

In fiber application: This FTTH fiber fusion splicer light body and the fine design in the even if narrow work environment also can ease; Our this FTTH fiber fusion splicer has Novel light, and the FTTH fiber fusion splicer can provide fine imaging system and pure digital design makes the image display is more exquisite, clear. The embedded real-time operating system provides the friendly interface and more rich function; The built-in super capacity for long time high performance of lithium battery field work provides reliably.

Temperature, humidity and pressure real-time compensation system has greatly improved the equipment adapt to bad environmental change ability, for in different get low loss in the environment of the consistency of the provide a guarantee.

FTTH fiber fusion splicer Main features:
FTTH is environment, can be used in normal optical fiber engineering

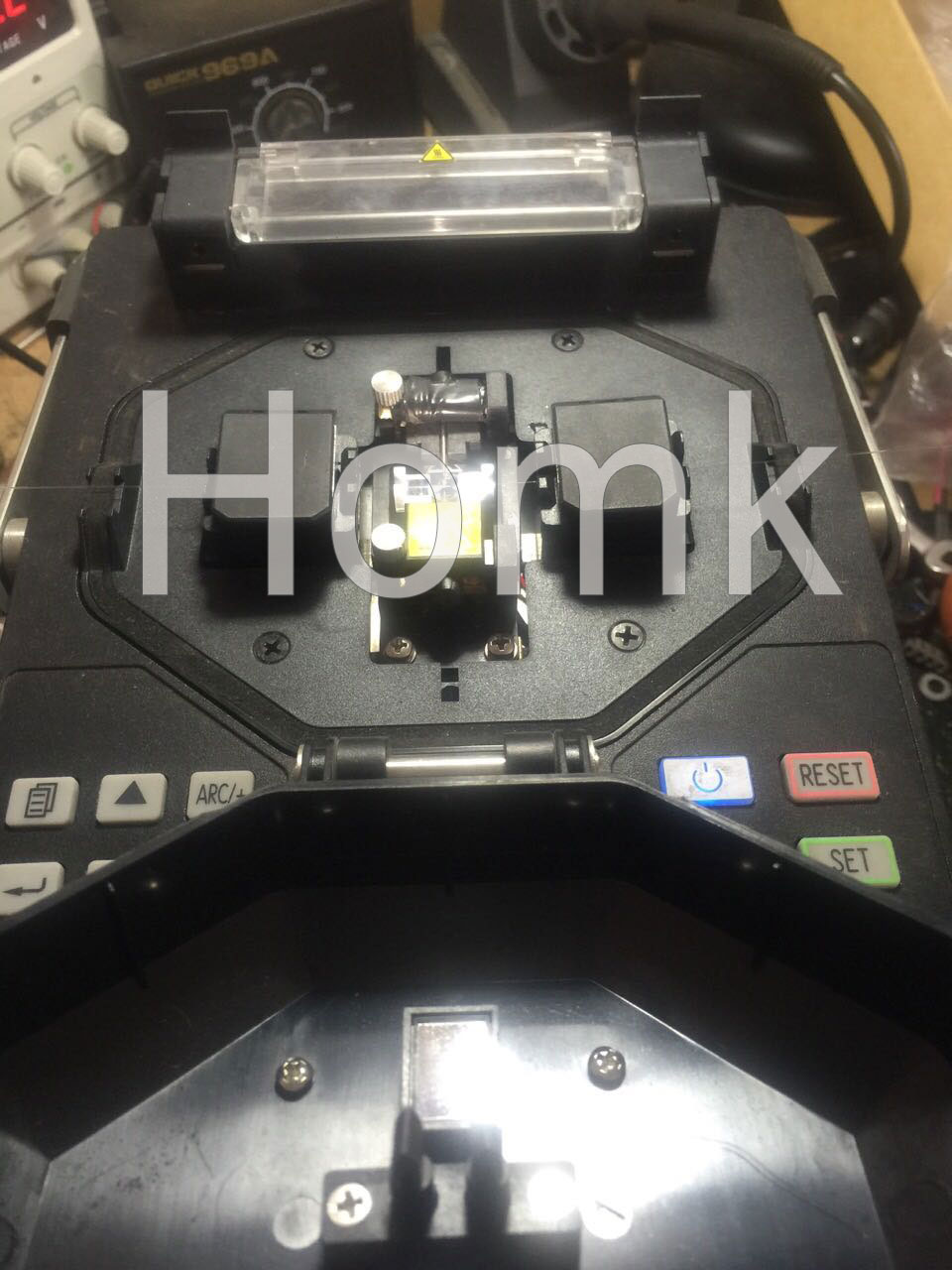

Accurate fiber core alignment, guarantee in the low loss
Small volume, light weight, including the battery only 2.8 kg
8 seconds welding, heat shrinkable 30 seconds
X/the Y axis shows at the same time, magnified 304 times
The FTTH fiber fusion splicer can be set to close wind cover automatically start welding, closed heating cover heat shrinkable start automatically
Real-time discharge correction, do not need to adjust the parameters
Electrode life is long, discharge is as high as 4000
USB and VGA port
The FTTH fiber fusion splicer has 5.7 inch high-definition digital display on the LCD panel
Built-in super capacity of lithium battery, can be completed in 220 times and heating
Real-time accurate says the battery surplus

Applicable FiberSMF(ITU-T G. 652), MMF(ITU-T G. 651), DSF(ITU-T G. 653), NZDSF

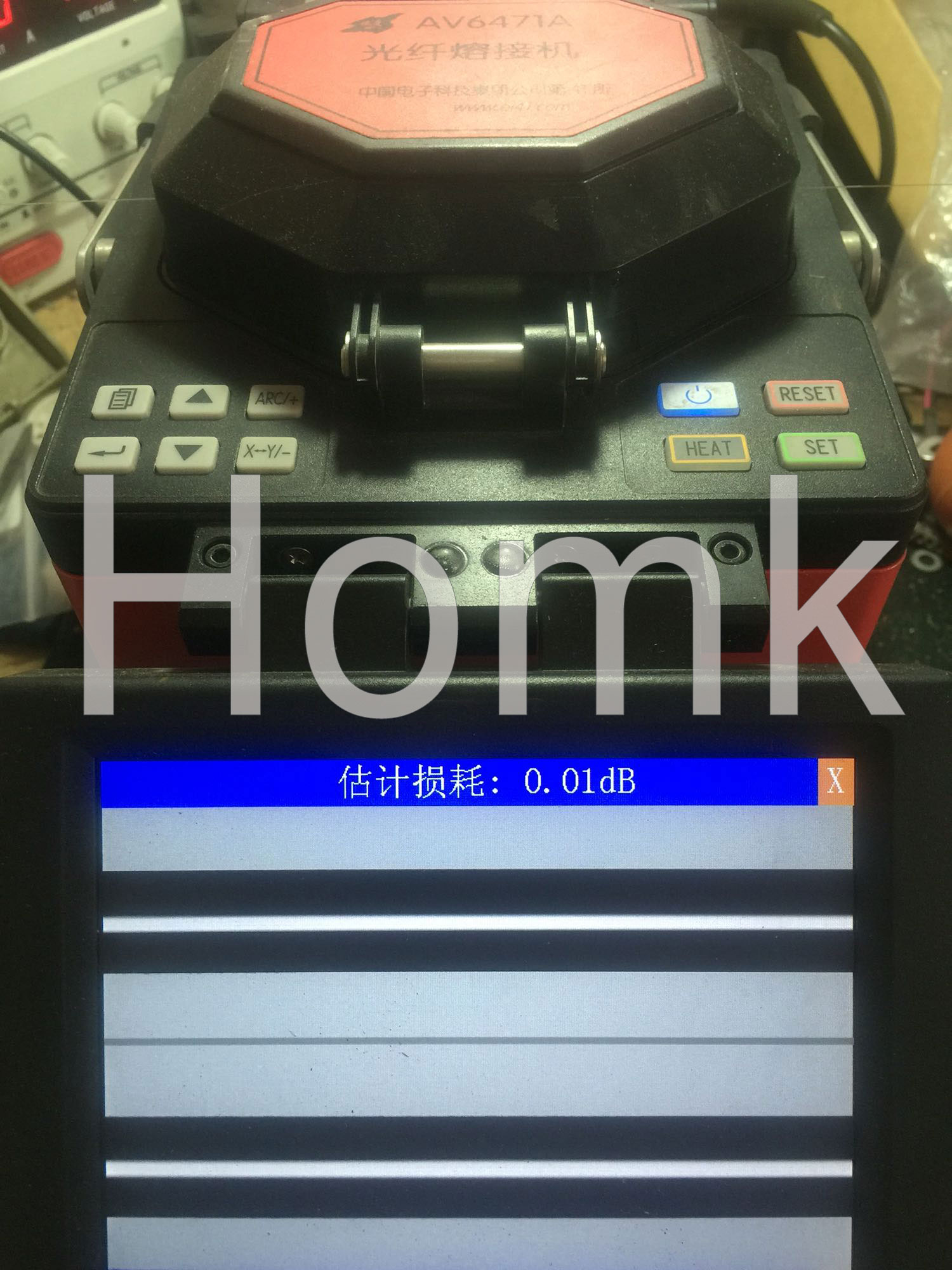

Average Splicing Loss0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return Loss< -60dB
Operation ModeAuto, Half auto, Manual
Align ModeAdvanced PAS align mode.
Fiber Diameterclad diameter: 80&micro; m&sim; 150&micro; m, coating diameter: 100&micro; m&sim; 1000&micro; m
Cleave Length8&sim; 16mm(coating diameter< 250&micro; m), 16mm(coating diameter 250&sim; 1000&micro; m)
MagnificationVertical 152times, horizontal 304times.
Image Display5.7&acute; 640&times; 480 LCD.
Pull TestStandard 2N(optional).
Pyrocondensation Tube40mm, 60mm and a series of micro Heat-Shrinkable Tubing.
Battery CapacityTypically splice 220 times, charging for 3.5 hour(available when charge).
Battery LifetimeCycle life up to 300&sim; 500 times, replaceable.
Electrode Lifetime> 4000 times, replaceable
Lighting for ConstructionBuilt-in super High-brightness LED supply convenient for night work
PortsUSB, VGA
Power SupplyBuilt in 11.1V Lithium Ion Battery. AC adopter(input AC100&sim; 240, output DC13.5V/4.5A)
Environment AdaptationTemperature range: -10&ordm; C&sim; 50&ordm; C; Humidity: 95%RH(40&ordm; C), no condensing); Altitude: 0&sim; 5000m
SizeL&times; W&times; H=160&times; 150&times; 140(mm)
Weight2.3kg(no battery ), 2.8kg (including battery)
