Figure 8 Self-support Stranded Cable(GYTC8S)

Details

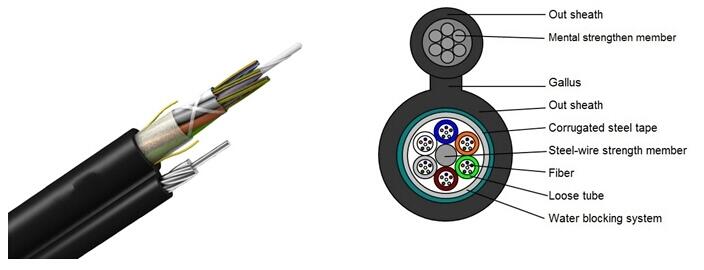

Figure 8 Self-support Stranded Cable(GYTC8S)


Product Name:Outdoor Fiber Cable

Model:Figure 8 self-supporting GYTC8S



Outdoor Fiber Cable Application:

☆.The outdoor fiber cable adopted to Outdoor distribution.
☆.Outdoor fiber cable is suitable for aerial installation
☆.Long distance and local area network communication.



Outdoor Fiber Cable Characteristics:

☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.



Outdoor Fiber Cable Technical Parameters:

Cable Count

Out sheath
Diameter

Weight

Minimum allowable Tensile Strength
(N)

minimum allowable Crush Load
(N/100mm)

Minimum Bending Radius
(MM)

Storage
temperature

(MM)

(KG)

short term

long term

short term

long term

short term

long term

(℃)

6

3.0×9.8

54.00

1000

200

1000

200

20D

10D

-40+60

12

3.0×9.8

54.00

1000

200

1000

200

20D

10D

-40+60

247.0×14.5210.0300010003000100020D10D-40+60
367.0×14.5210.0300010003000100020D10D-40+60
427.0×14.5210.0300010003000100020D10D-40+60
487.0×15.5210.0300010003000100020D10D-40+60
727.0×15.5245.0300010003000100020D10D-40+60
1447.0×15.5285.0300010003000100020D10D-40+60



Outdoor Fiber Cable Characteristics:

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A、B、C)

B1.1:Conventional fiber

G.652D

B2: Zero  dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1、A2 、B3)

B4: Main technical data for positive
  dispersion shifted single-mode fiber
