Outdoor Fiber Optical Cable(GYXTC8Y)
Product Name:Outdoor Fiber Optical Cable

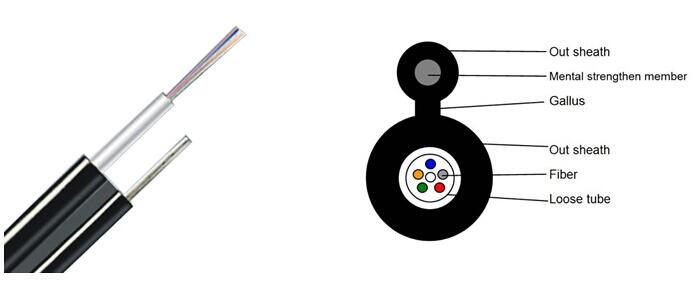

Model:GYXTC8Y Figure 8 self-supporting
Outdoor Fiber Optical Cable Application:
☆.Outdoor Fiber Optical Cable adopted to Outdoor distribution.
☆.Outdoor Fiber Optical Cable is suitable for aerial installation
☆.Long distance and local area network communication.
Outdoor Fiber Optical Cable Characteristics:
☆.Stainless steel or gaivanized steel self-supporting.
☆.Excellet mechanical and environmental performance.
Outdoor Fiber Optical Cable Technical Parameters:
Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||
（MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
2 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
| 4 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
6 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
8 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
12 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
| 24 | 3.2×6.5 | 54.0 | 1500 | 600 | 1500 | 600 | 20D | 10D | -40+60 |
Outdoor Fiber Optical Cable Characteristics: | ||||
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 | ||||
Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
G.652D | B2: Zero dispersion shifted | |||
G.655 | B1.2 :Cut-off wavelength shifted | |||
G.657（A1、A2 、B3） | B4: Main technical data for positive | |||
