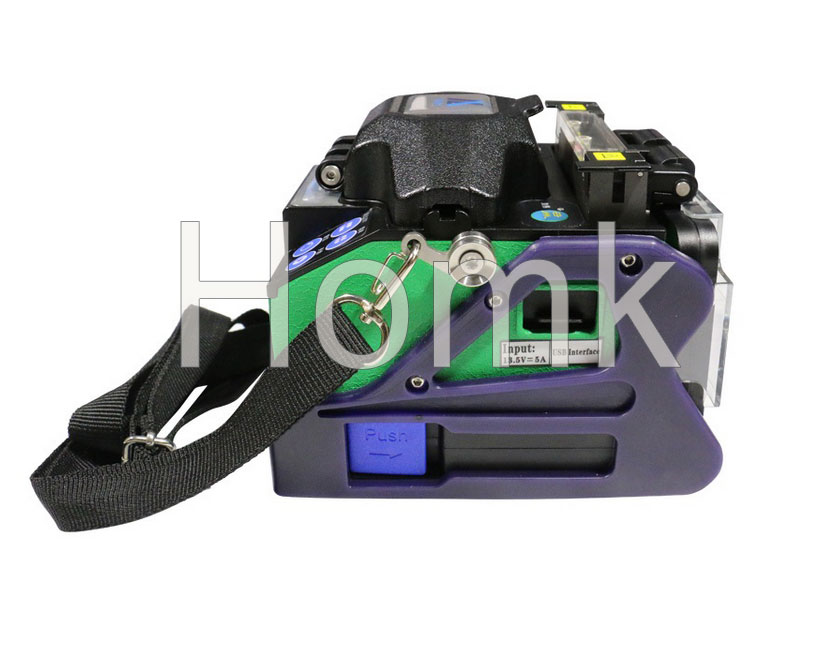

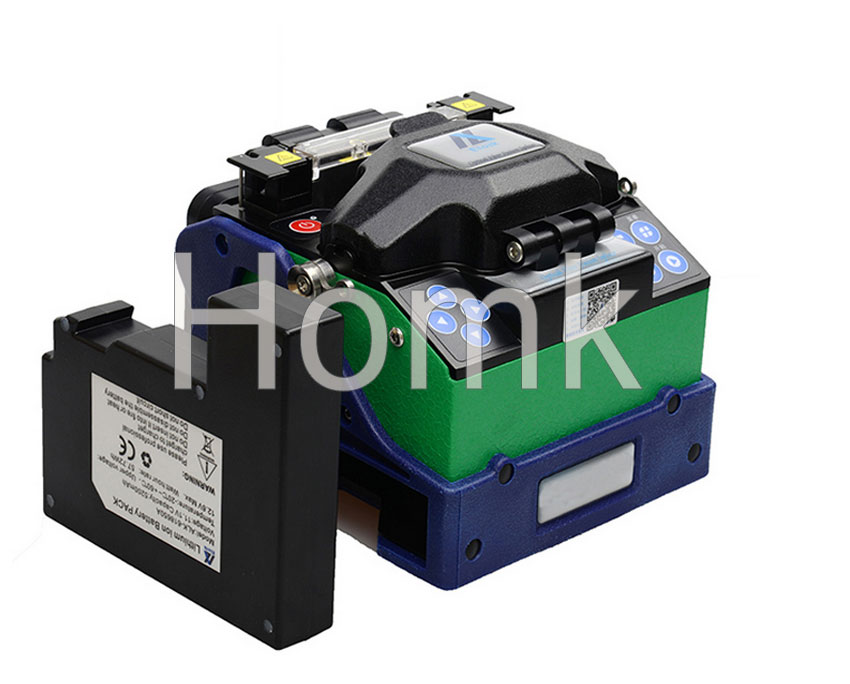

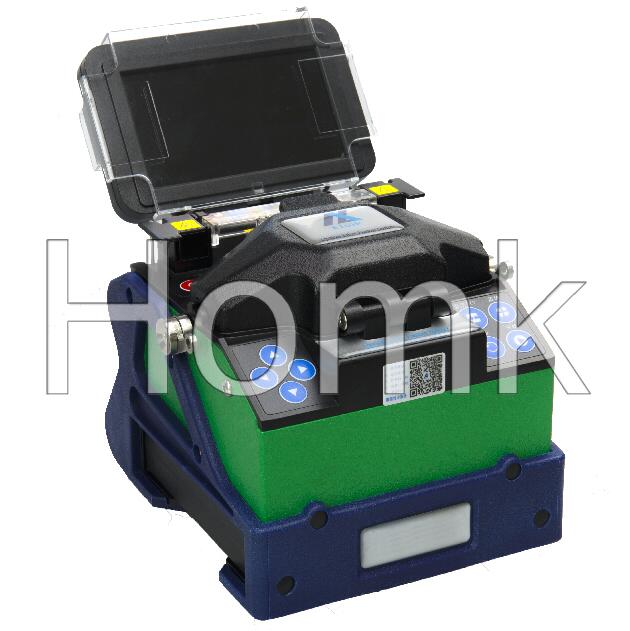

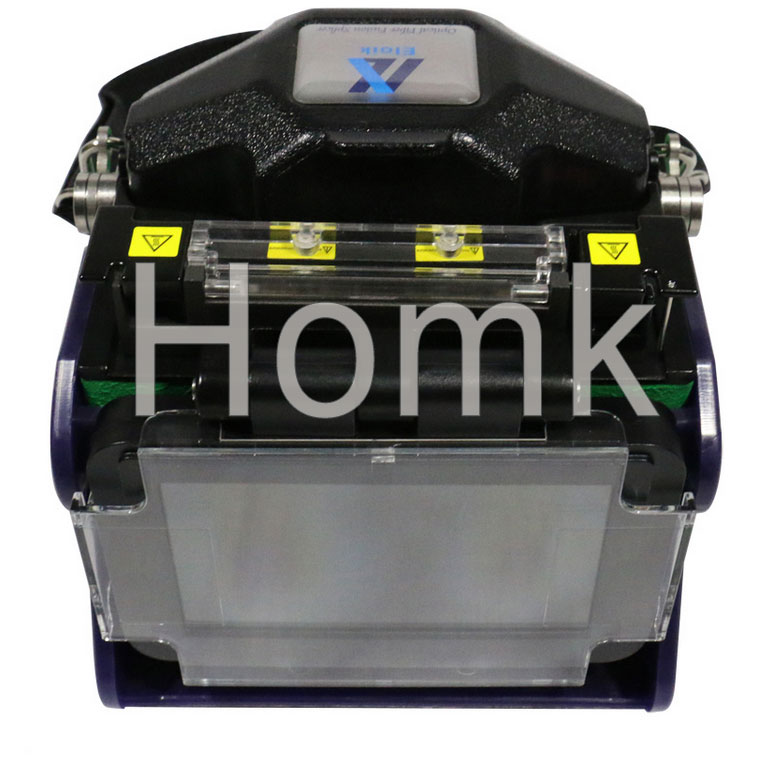

Eloik ALK-88A Fiber Optic Fusion Splicer
Introduction:
Optical fiber fusion splicer ELOIK ALK-88 with our own intellectual property right of fiber core, is a Mini Type Fusion splicer. It adopts PAS Fiber adjustment technology. With four motors driver and fiber adjustment function, it is not only used for FTTX project, but also used for main line. It is a machine which is the smallest, lightest and fastest splicing speed.
Application Fields:
Based on the PAS fiber core alignment technology
Adopt CMOS image sensor imaging technology
Adopt four precision motors diver
The function contains: stripping drop cable, cutting, splicing, thermal shrinkage, cleaning etc
Small in size, light in weight, fast in splicing
Product advantages:
1 .hardness: Titanium body, rubber protection, quakeproof, dustproof, waterproof
2. Fast:7s fast splicing, 30s fast heating. support continuous heating, the average efficiency improve 2 times
3. Long lifetime: no memory effect Lithium Batteries. Support 200 fiber splicing and thermal shrinkage. The fiber cleaver has 16 blade.
4. Convenience: convenient for maintenance
5.Operating evnoronment:0 ~ 4500 m above sea level, relative humidity of 0 ~ 95% (no cold condensation dew), temperature of 20 ℃ ~ 55 ℃, the maximum wind speed of 15 m/s Storage conditions: 0 ~ 95% relative humidity (no cold condensation dew), temperature - 40 ℃ ~ 80 ℃ (in addition to the battery), temperature - 10 ℃ to 40 ℃ (battery)
6. Replaceable fiber fixture: Clipcan change the design, through the combination of different fixture can meet the needs of different types of fiber optic cable welding.
Specification:
Applicable fiber Type | SM, MM, DS, NZDS |
Applicable fiber Count | Single |
Applicable diber diameter | Cladding diameter of 125μm, coating diameter 250~900μm |
Splice Mode | Stored 40 groups, 80 groups of user-defined |
Average splice loss | 0.01dB(SM), 0.005dB(MM), 0.04dB(DS), 0.05Db(NZDS) |
Return Loss | More than 60dB |
Connecting time | 9sec (typical time) |
Splice loss evaluation | Have |
Tensile test | 2N |
Screen | 4.3inch color LCD, support Chinese and English display |
Optical magnification | X/Y:115 times, X,or Y: 230 times |
Power Supply | 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply |
Battery | Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h, can be resued 500 times |
Maximum storage | 5000 set of the latest record storage |
Data interface | USB2.0 |
Operating environment | Altitude 0~4000m, 0 to 95% relative humidity. Temperature -10℃ ~55℃, the maximum wind speed 15 m/s |
Storage Conditions | 0 to 95% relative humidity, temperature-40℃ ~80℃(except battery,) temperature -10℃ ~30℃(battery) |
Weight | 1.54kgs (without battery), 1.82kgs(including battery), including attachments packing gross weight:5.38kgs |
Corrosion resistance | Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion |
Size | 150D X 130W X 126H (mm) |
Packing | New waterproof, drop, more than can be heavy 300kgs |
